7.3.6.7.1.6 Sampling Rate: 88.2 kHz to 96 kHz

Figure 7-29 and Figure 7-30 respectively show the magnitude response and the pass-band ripple for a decimation filter with a sampling rate of 88.2 kHz to 96 kHz. Table 7-24 lists the specifications for a decimation filter with an 88.2-kHz to 96-kHz sampling rate.

GUID-B02A4D92-9444-4EC7-BAF2-14AB5FF6E0EA-low.gifFigure 7-29 Linear Phase Decimation Filter Magnitude Response

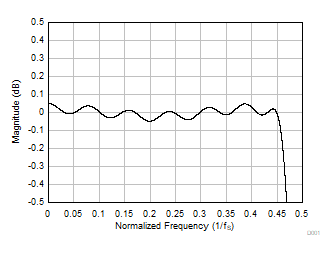

GUID-ACF848F6-624B-4222-97D9-4B7E9FBE523F-low.gifFigure 7-30 Linear Phase Decimation Filter Pass-Band Ripple
Table 7-24 Linear Phase Decimation Filter Specifications
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
Pass-band rippleFrequency range is 0 to 0.454 × fS–0.050.05dB
Stop-band attenuationFrequency range is 0.58 × fS to 4 × fS73.6dB
Frequency range is 4 × fS onwards97.9
Group delay or latencyFrequency range is 0 to 0.454 × fS17.11/fS
