4.2 Power Connections and LED Indicators

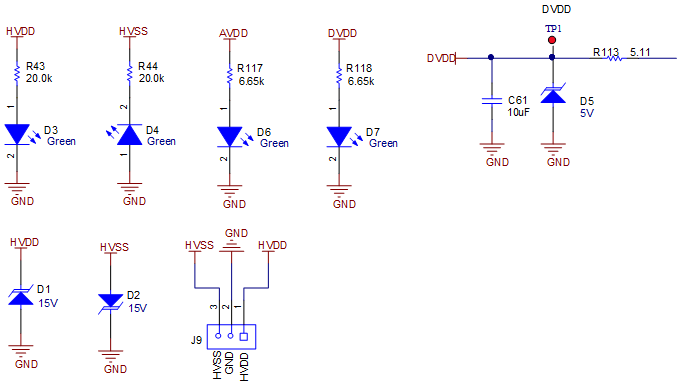

The screw terminal block J9 is used to connect the external high voltage supplies. These supplies are not provided in the evaluation module kit and it is expected that you will use low noise lab supply to provide this power (for example, Keysight E3632a). The high voltage supplies have transient voltage suppressor diodes to help protect the ADC from transients. These supplies are typically connected to +/-15 V. For details on operation, see the ADS8568 data sheet. Figure 4-2 also shows how each supply has an LED monitor for quick verification that power is applied.

GUID-20200707-SS0I-8FHP-ZBD1-Z4R6ZFZG4W7V-low.gif Figure 4-2 Supply Connections and Led Monitors
