A.2 Layout

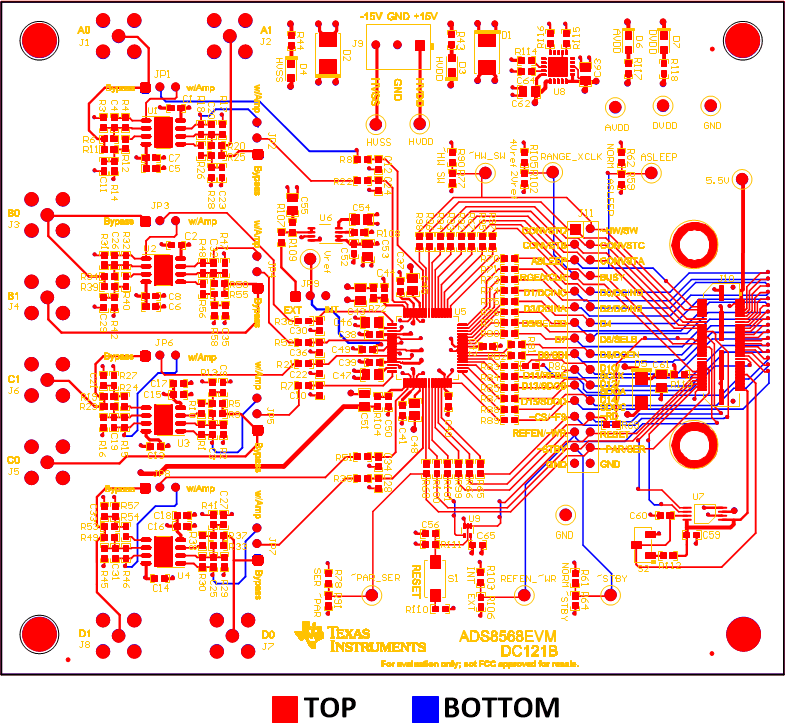

Figure 8-1 shows the top and bottom layers. All signals are on top and bottom.

GUID-20200707-SS0I-WPQT-G5SD-FQSPQVFPWR8M-low.gif Figure 8-1 Top and Bottom Layer ADS8568EVM

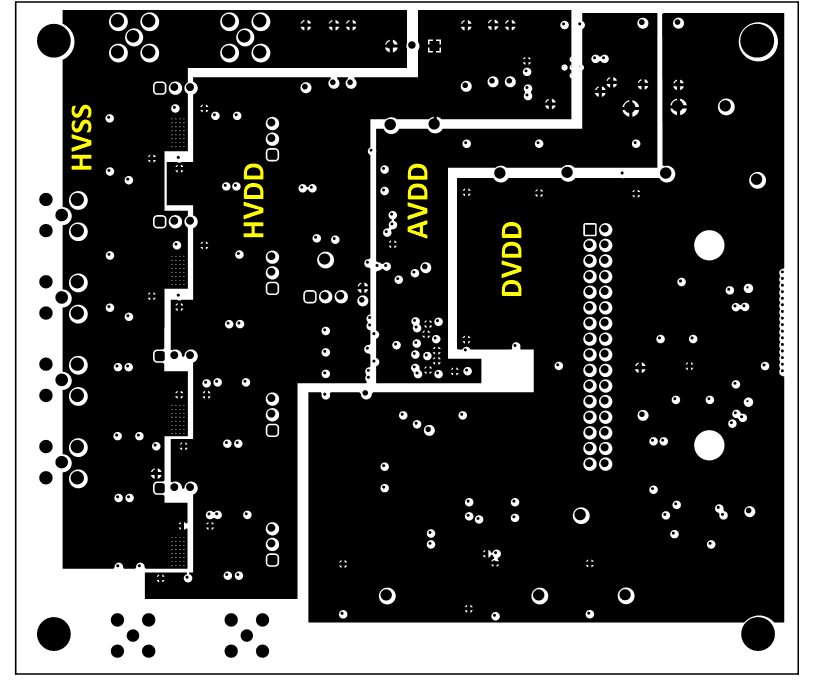

Figure 8-2 shows all power supply connections (AVDD, DVDD, HVDD, and HVSS).

GUID-20201222-CA0I-MMKV-MS8J-PB82FKZGKQBG-low.gif Figure 8-2 Inner Power Layer

Figure 8-3 shows the internal ground layer. All GND connections are to this layer using vias.

GUID-20201222-CA0I-GKJT-P830-VN7DSH8ZTQ7V-low.gif Figure 8-3 Inner Ground Layer
