1.2 ADS8900EVM Features

As shown in Figure 1-1, the ADS8900EVM includes the following features:

  • Onboard low-noise and low-distortion ADC input drivers optimized to meet ADC performance.
  • Onboard precision 5.0-V voltage reference filtered and followed by a low-noise, low-offset, and low-impedance buffer. The reference driver circuit is optimized for 1-LSB voltage regulation under maximum loading conditions at full device throughput of 1 MSPS.
  • Onboard ultra-low-noise, low-dropout (LDO) regulator for excellent 5-V, single-supply regulation of all operational amplifiers and voltage reference.

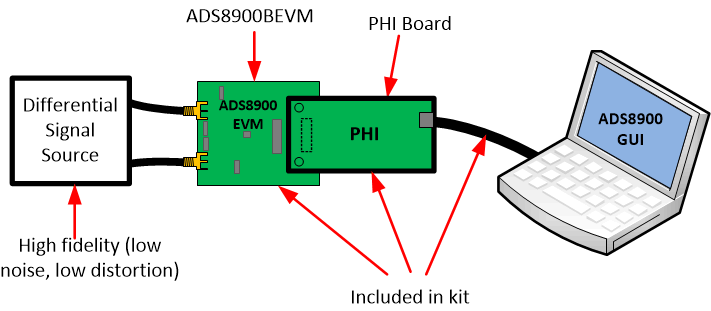

    GUID-20201201-CA0I-G9QL-60PV-LZSMGVHC6STZ-low.gif Figure 1-1 System Connection for Evaluation
