3.2 I2C Bus for Onboard EEPROM

The circuit shown in Figure 3-1 is used with the EVM controller (PHI), for EVM identification. This circuit is not required by the ADS8900B for operation. The jumper (JP5) is write protected and does not need to be changed for EVM operation.

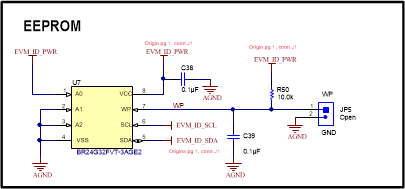

GUID-20201201-CA0I-8GN6-ZT7C-9N6B0WFGTJLZ-low.gifFigure 3-1 EEPROM for EVM ID
