Time Domain and Histogram Statistics

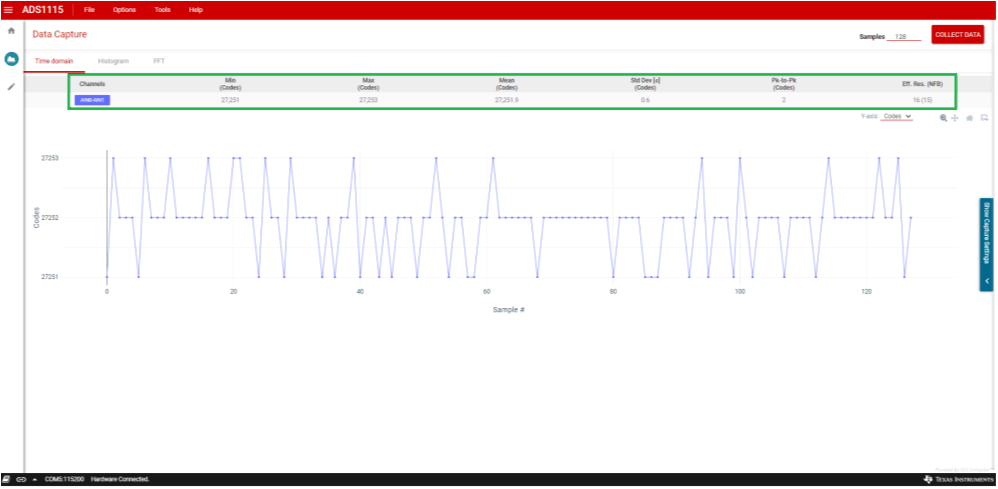

As depicted in Figure 5-15, the Time Domain and Histogram plots share the same statistical information:

  • Input Channels selected
  • Min code within the data set
  • Max code within the data set
  • Mean code value within the data set
  • Std Dev representing the standard deviation within the data set
  • Pk-to-Pk representing the total noise peak-to-peak within the data set
  • Eff. Res representing the effective resolution as number of bits with the value in parenthesis showing the noise-free number of bits
GUID-20210317-CA0I-3CQ5-KWBH-29XL2D34NFJH-low.gifFigure 5-15 Capture Statistics
