5.6 Typical Characteristics

At TA = 25°C, VVS = 3.3 V, VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV and VVBUS = 12 V, unless otherwise noted.

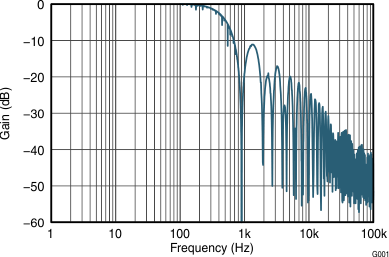

INA226 Frequency Response
Figure 5-1 Frequency Response
INA226 Shunt Input Offset Voltage vs Temperature
Figure 5-3 Shunt Input Offset Voltage vs Temperature

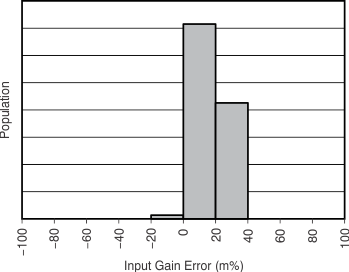

INA226 Shunt Input Gain Error Production Distribution
Figure 5-5 Shunt Input Gain Error Production Distribution
INA226 Shunt Input Gain Error vs Common-Mode Voltage
Figure 5-7 Shunt Input Gain Error vs Common-Mode Voltage
INA226 Bus Input Offset Voltage vs Temperature
Figure 5-9 Bus Input Offset Voltage vs Temperature
INA226 Bus Input Gain Error vs Temperature
Figure 5-11 Bus Input Gain Error vs Temperature
INA226 Input Bias Current vs Temperature
Figure 5-13 Input Bias Current vs Temperature
INA226 Active IQ vs Temperature
Figure 5-15 Active IQ vs Temperature
INA226 Active IQ vs I2C Clock Frequency
Figure 5-17 Active IQ vs I2C Clock Frequency
INA226 Shunt Input Offset Voltage Production Distribution
Figure 5-2 Shunt Input Offset Voltage Production Distribution
INA226 Shunt Input Common-Mode Rejection Ratio vs Temperature
Figure 5-4 Shunt Input Common-Mode Rejection Ratio vs Temperature
INA226 Shunt Input Gain Error vs Temperature
Figure 5-6 Shunt Input Gain Error vs Temperature

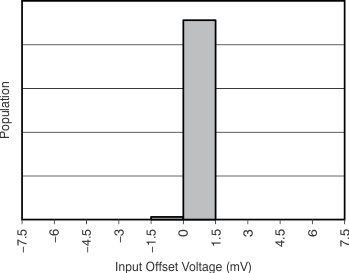

INA226 Bus Input Offset Voltage Production Distribution
Figure 5-8 Bus Input Offset Voltage Production Distribution

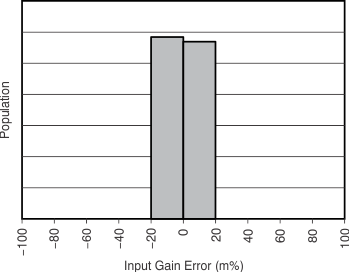

INA226 Bus Input Gain Error Production Distribution
Figure 5-10 Bus Input Gain Error Production Distribution
INA226 Input Bias Current vs Common-Mode Voltage
Figure 5-12 Input Bias Current vs Common-Mode Voltage
INA226 Input Bias Current vs Temperature, Shutdown
Figure 5-14 Input Bias Current vs Temperature, Shutdown
INA226 Shutdown IQ vs Temperature
Figure 5-16 Shutdown IQ vs Temperature
INA226 Shutdown IQ vs I2C Clock Frequency
Figure 5-18 Shutdown IQ vs I2C Clock Frequency
