7.2.1.3 Application Curves

Figure 7-2 and Figure 7-3 show the frequency response and distortion performance of the circuit in Figure 7-1. The measurements are made with a load resistor (RL) of 100 Ω, and at room temperature. Figure 7-2 is measured using the three different device power modes, and the distortion measurements in Figure 7-3 are made at an output voltage level of 2 VPP.

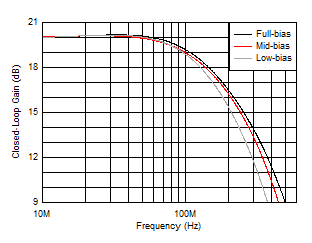

THS6212 Frequency ResponseFigure 7-2 Frequency Response

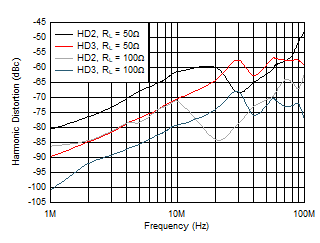

THS6212 Harmonic DistortionFigure 7-3 Harmonic Distortion
