5.8 Typical Characteristics: VS = 12 V

at TA ≅ 25°C, AV = 10 V/V, RF = 1.24 kΩ, RL = 50 Ω, RS = 2.5 Ω, RADJ = 0 Ω, full-bias mode (unless otherwise noted)

THS6212 Small-Signal Frequency Response
VO = 2 VPP
Figure 5-1 Small-Signal Frequency Response
THS6212 Out-of-Band Suppression
SGCC HPLC profiles, crest factor = 5 V/V
Figure 5-3 Out-of-Band Suppression
THS6212 Small-Signal Frequency Response vs RF
AV = 10 V/V, VO = 2 VPP
Figure 5-5 Small-Signal Frequency Response vs RF
THS6212 Small-Signal Gain Flatness vs RF
AV = 10 V/V, VO = 2 VPP
Figure 5-7 Small-Signal Gain Flatness vs RF
THS6212 Large-Signal Gain Flatness
VO = 16 VPP


Figure 5-9 Large-Signal Gain Flatness
THS6212 Large-Signal Frequency Response vs VO
AV = 10 V/V
Figure 5-11 Large-Signal Frequency Response vs VO
THS6212 Small-Signal Frequency Response vs Bias Modes
AV = 10 V/V, VO = 2 VPP
Figure 5-13 Small-Signal Frequency Response vs Bias Modes
THS6212 Large-Signal Frequency Response vs Bias Modes
AV = 15 V/V, VO = 16 VPP
Figure 5-15 Large-Signal Frequency Response vs Bias Modes
THS6212 Harmonic Distortion vs Frequency
VO = 2 VPP
Figure 5-17 Harmonic Distortion vs Frequency
THS6212 Harmonic Distortion vs VO
f = 1 MHz, AV = 10 V/V
Figure 5-19 Harmonic Distortion vs VO
THS6212 Harmonic Distortion vs RL
f = 1 MHz, VO = 2 VPP, AV = 10 V/V
Figure 5-21 Harmonic Distortion vs RL
THS6212 Intermodulation Distortion vs Frequency
±12.2 kHz tone spacing, VO = 2 VPP per tone
Figure 5-23 Intermodulation Distortion vs Frequency
THS6212 Small-Signal Pulse Response
VO step = 2 VPP
Figure 5-25 Small-Signal Pulse Response
THS6212 Open-Loop Transimpedance Gain and Phase vs Frequency
Full-bias simulation
Figure 5-27 Open-Loop Transimpedance Gain and Phase vs Frequency
THS6212 Open-Loop Transimpedance Gain and Phase vs Frequency
Low-bias simulation
Figure 5-29 Open-Loop Transimpedance Gain and Phase vs Frequency
THS6212 Quiescent Current vs Single-Supply Voltage
RL = no load
Figure 5-31 Quiescent Current vs Single-Supply Voltage
THS6212 Quiescent Current vs Temperature
RL = no load
Figure 5-33 Quiescent Current vs Temperature

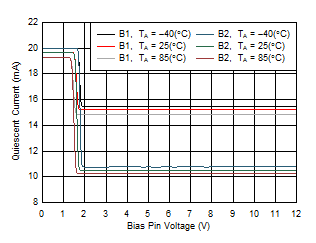

THS6212 Mode Transition Voltage Threshold
B1 = full-bias to mid-bias transition with B2 = GND pin,
B2 = full-bias to low-bias transition with B1 = GND pin,
GND pin = VS–
Figure 5-35 Mode Transition Voltage Threshold

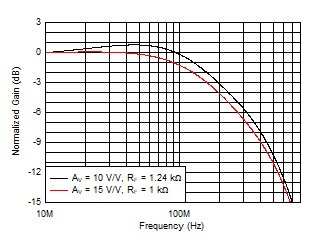

THS6212 Large-Signal Frequency Response
VO = 16 VPP
Figure 5-2 Large-Signal Frequency Response
THS6212 Small-Signal Frequency Response vs Temperature
AV = 15 V/V, VO = 2 VPP
Figure 5-4 Small-Signal Frequency Response vs Temperature
THS6212 Small-Signal Frequency Response vs RF
AV = 15 V/V, VO = 2 VPP
Figure 5-6 Small-Signal Frequency Response vs RF
THS6212 Small-Signal Gain Flatness vs RF
AV = 15 V/V, VO = 2 VPP
Figure 5-8 Small-Signal Gain Flatness vs RF
THS6212 Small-Signal Frequency Response vs CLOAD
VO = 100 mVPP
Frequency response is measured at the device output pin before the isolation resistor.
Figure 5-10 Small-Signal Frequency Response vs CLOAD

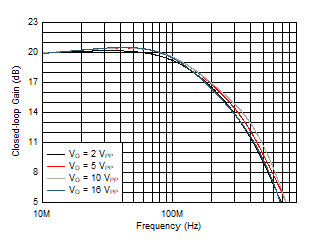

THS6212 Large-Signal Frequency Response vs VO
AV = 15 V/V
Figure 5-12 Large-Signal Frequency Response vs VO

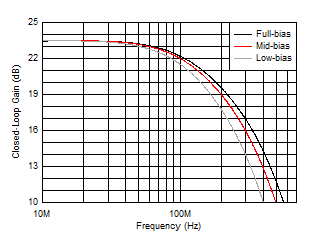

THS6212 Small-Signal Frequency Response vs Bias Modes
AV = 15 V/V, VO = 2 VPP
Figure 5-14 Small-Signal Frequency Response vs Bias Modes
THS6212 Input Voltage and Current Noise Density vs Frequency
Figure 5-16 Input Voltage and Current Noise Density vs Frequency
THS6212 Harmonic Distortion vs Gain
f = 1 MHz, VO = 2 VPP
Figure 5-18 Harmonic Distortion vs Gain
THS6212 Harmonic Distortion vs VO
f = 10 MHz, AV = 10 V/V
Figure 5-20 Harmonic Distortion vs VO

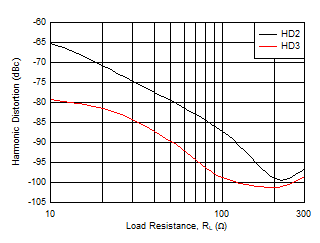

THS6212 Harmonic Distortion vs RL
f = 10 MHz, VO = 2 VPP, AV = 10 V/V
Figure 5-22 Harmonic Distortion vs RL
THS6212 Overdrive Recovery
VIN = 2.8-VPP triangular waveform
Figure 5-24 Overdrive Recovery
THS6212 Large-Signal Pulse Response
VO step = 16 VPP
Figure 5-26 Large-Signal Pulse Response
THS6212 Open-Loop Transimpedance Gain and Phase vs Frequency
Mid-bias simulation
Figure 5-28 Open-Loop Transimpedance Gain and Phase vs Frequency
THS6212 Open-Loop Output Impedance vs Frequency
Simulation
Figure 5-30 Open-Loop Output Impedance vs Frequency
THS6212 Quiescent Current vs RADJ
RL = no load
Figure 5-32 Quiescent Current vs RADJ
THS6212 PSRR and CMRR vs Frequency
TJ = 50°C, simulation
Figure 5-34 PSRR and CMRR vs Frequency
THS6212 Full-Bias and Shutdown Mode Transition Timing



Figure 5-36 Full-Bias and Shutdown Mode Transition Timing
