SENS079 (INA234EVM, INA236EVM)

This section shows the PCB layers of the SENS079 variant (INA234EVM and INA236EVM).

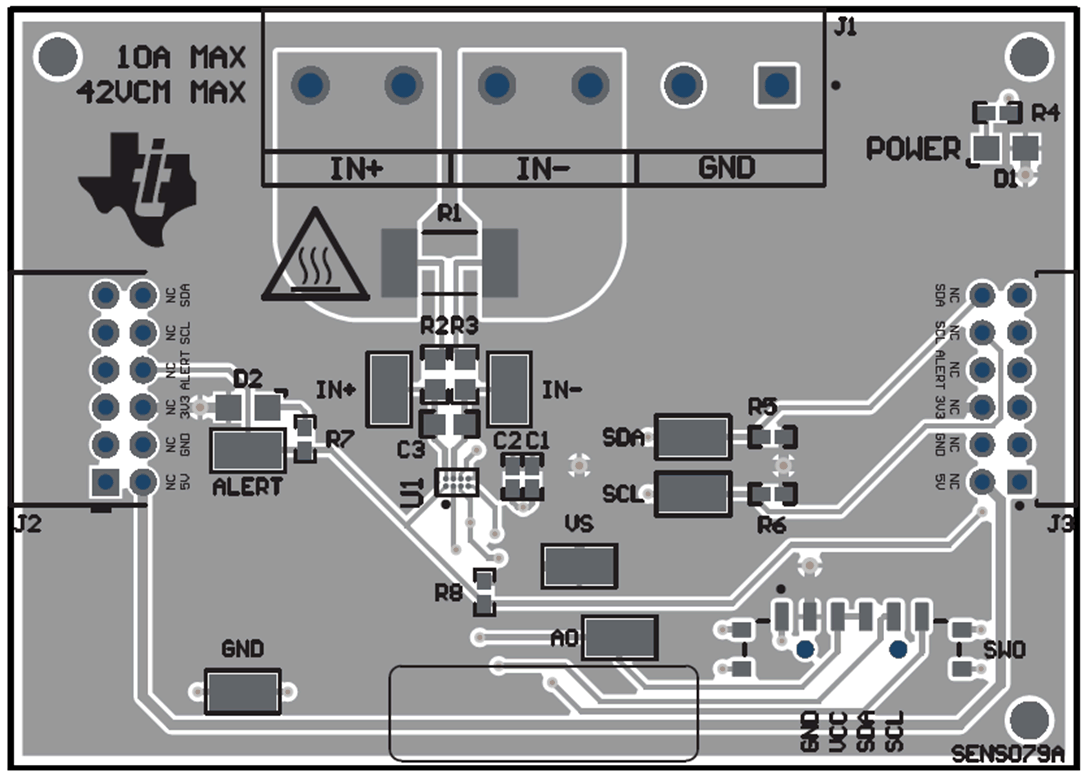

GUID-20210423-CA0I-L7FB-GPHV-JJPPVZBDSMWF-low.gifFigure 6-4 SENS079 Top View
GUID-20210423-CA0I-G8CJ-0JXL-WSCM1BKNJM1V-low.gifFigure 6-6 SENS079 Bottom View
GUID-20210423-CA0I-LWKC-0681-J9ZKTD7KWWV9-low.gifFigure 6-5 SENS079 Top Layer
GUID-20210423-CA0I-NHZZ-V2CH-7MPN7V8PTDVJ-low.gifFigure 6-7 SENS079 Bottom Layer
