6.6 Typical Characteristics

at TA = 25°C, VIN = 1.4 V or VIN = VOUT(NOM) + 0.4 V (whichever is greater), VBIAS = open, VOUT(NOM) = 0.8 V, VEN = 1.1 V, COUT = 47 µF, CNR/SS = 0 nF, CFF = 0 nF, and PG pin pulled up to VIN with 100 kΩ (unless otherwise noted)
TPS7A54-Q1 PSRR_vs_Iout.gif
VIN = 1.1 V, VBIAS = 5 V,
COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF, CFF = 10 nF
Figure 1. PSRR vs Frequency and IOUT
TPS7A54-Q1 PSRR_vs_Vbias.gif
VIN = 1.4 V, IOUT = 1 A,
COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF, CFF = 10 nF
Figure 3. PSRR vs Frequency and VBIAS
TPS7A54-Q1 PSRR_vs_Vout_with_Bias.gif
VIN = VOUT + 0.3 V, VBIAS = 5.0 V, IOUT = 3 A,
COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF, CFF = 10 nF
Figure 5. PSRR vs Frequency and VOUT With Bias
TPS7A54-Q1 PSRR_vs_Cout.gif
VIN = VOUT + 0.3 V, VOUT = 1 V, IOUT = 3 A, CNR/SS = 10 nF,
CFF = 10 nF
Figure 7. PSRR vs Frequency and COUT
TPS7A54-Q1 Noise_vs_Iout_Vout.gif
VIN = VOUT + 0.3 V and VBIAS = 5 V for VOUT ≤ 2.2 V,
COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF, CFF = 10 nF,
RMS noise BW = 10 Hz to 100 kHz
Figure 9. Output Voltage Noise vs Output Voltage
TPS7A54-Q1 Noise_vs_Vin.gif
IOUT = 3 A, COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF,
CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 11. Output Noise vs Frequency and Input Voltage
TPS7A54-Q1 Noise_vs_Cff.gif
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT = 3 A, sequencing with a dc/dc converter and PG, COUT = 47 µF || 10 µF || 10 µF,
CNR/SS = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 13. Output Noise vs Frequency and CFF
TPS7A54-Q1 Startup_Vs_Cnr.gif
VIN = 1.2 V, VOUT = 0.9 V, VBIAS = 5.0 V, IOUT = 3 A,
COUT = 47 µF || 10 µF || 10 µF, CFF = 10 nF
Figure 15. Start-Up Waveform vs Time and CNR/SS
TPS7A54-Q1 Load_trans_vs_Vout_no_bias.gif
IOUT, DC = 100 mA, COUT = 47 µF || 10 µF || 10 µF,
CNR/SS = CFF = 10 nF, slew rate = 1 A/µs
Figure 17. Load Transient vs Time and VOUT Without Bias
TPS7A54-Q1 Load_Trans_vs_preload.gif
VIN = 1.2 V, VBIAS = 5.0 V, COUT = 47 µF || 10 µF || 10 µF,
CNR/SS = CFF = 10 nF, slew rate = 1 A/µs

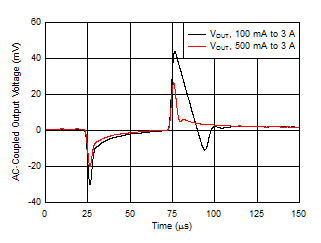

Figure 19. Load Transient vs Time and DC Load
(VOUT = 0.9 V)
TPS7A54-Q1 D021-SBVS312-02.gif
IOUT = 3 A, VBIAS = 6.5 V
Figure 21. Dropout Voltage vs Input Voltage With Bias
TPS7A54-Q1 D023-SBVS312-01.gif
VIN = 1.1 V, VBIAS = 3 V
Figure 23. Dropout Voltage vs Output Current With Bias
TPS7A54-Q1 D026-SBVS312-01.gif
VIN = 1.4 V, VBIAS = 0 V
Figure 25. Load Regulation With Bias
TPS7A54-Q1 D032-SBVS312-02.gif
VBIAS = 0 V, IOUT = 5 mA
Figure 27. Quiescent Current vs Input Voltage
TPS7A54-Q1 D034-SBVS312-02.gif
VBIAS = 0 V
Figure 29. Shutdown Current vs Input Voltage
TPS7A54-Q1 D036-SBVS312-01.gif
VBIAS = 0 V
Figure 31. NR/SS Current vs Temperature
TPS7A54-Q1 D038-SBVS312-02.gif
VIN = 1.1 V
Figure 33. VBIAS UVLO vs Temperature
TPS7A54-Q1 D040-SBVS312-02.gif
Figure 35. PG Voltage vs PG Current Sink
TPS7A54-Q1 D042-SBVS312-01.gif
Figure 37. PG Threshold vs Temperature
TPS7A54-Q1 PSRR_vs_Vin_with_Bias.gif
IOUT = 3 A, VBIAS = 5 V,
COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF, CFF = 10 nF
Figure 2. PSRR vs Frequency and VIN With Bias
TPS7A54-Q1 PSRR_vs_VIN.gif
IOUT = 1 A,
COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF, CFF = 10 nF
Figure 4. PSRR vs Frequency and VIN
TPS7A54-Q1 PSRR_vs_Vin_3p3Vout.gif
IOUT = 3 A, COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF,
CFF = 10 nF
Figure 6. PSRR vs Frequency and VIN for VOUT = 3.3 V
TPS7A54-Q1 7a84_Bias_PSRR.gif
VIN = VOUT + 0.3 V, VOUT = 1 V, IOUT = 3 A,
COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF, CFF = 10 nF
Figure 8. VBIAS PSRR vs Frequency and VBIAS
TPS7A54-Q1 Noise_vs_Vout.gif
VIN = VOUT + 0.3 V and VBIAS = 5 V for VOUT ≤ 2.2 V, IOUT = 3 A, COUT = 47 µF || 10 µF || 10 µF, CNR/SS = 10 nF, CFF = 10 nF,
RMS noise BW = 10 Hz to 100 kHz
Figure 10. Output Noise vs Frequency and VOUT
TPS7A54-Q1 Noise_vs_Cnr.gif
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT = 3 A, COUT = 47 µF ||
10 µF || 10 µF, CFF = 10 nF, RMS noise BW = 10 Hz to 100 kHz
Figure 12. Output Noise vs Frequency and CNR/SS
TPS7A54-Q1 Noise_vs_Cnr_5Vout.gif
IOUT = 3 A, COUT = 47 µF || 10 µF || 10 µF, CFF = 10 nF,
RMS noise BW = 10 Hz to 100 kHz
Figure 14. Output Noise at 5.0-V Output
TPS7A54-Q1 Load_trans_vs_Vout.gif
VIN = VOUT + 0.3 V, VBIAS = 5 V, IOUT, DC = 100 mA, slew rate = 1 A/µs, CNR/SS = CFF = 10 nF, COUT = 47 µF || 10 µF || 10 µF
Figure 16. Load Transient vs Time and VOUT With Bias
TPS7A54-Q1 Load_trans_vs_SR.gif
VOUT = 5 V, IOUT, DC = 100 mA, IOUT = 100 mA to 3 A,
COUT = 47 µF || 10 µF || 10 µF, CNR/SS = CFF = 10 nF
Figure 18. Load Transient vs Time and Slew Rate
TPS7A54-Q1 D020-SBVS312-01.gif
IOUT = 3 A, VBIAS = 0 V
Figure 20. Dropout Voltage vs Input Voltage Without Bias
TPS7A54-Q1 D022-SBVS312-01.gif
VIN = 1.4 V, VBIAS = 0 V
Figure 22. Dropout Voltage vs Output Current Without Bias
TPS7A54-Q1 D024-SBVS312-01.gif
VIN = 5.5 V
Figure 24. Dropout Voltage vs Output Current (High VIN)
TPS7A54-Q1 D029-SBVS312-01.gif
VOUT = 0.8 V, VBIAS = 0 V, IOUT = 5 mA
Figure 26. Line Regulation Without Bias
TPS7A54-Q1 D033-SBVS312-01.gif
VIN = 1.1 V, IOUT = 5 mA
Figure 28. Quiescent Current vs Bias Voltage
TPS7A54-Q1 D035-SBVS312-01.gif
VIN = 1.1 V
Figure 30. Shutdown Current vs Bias Voltage
TPS7A54-Q1 D037-SBVS312-02.gif
Figure 32. VIN UVLO vs Temperature
TPS7A54-Q1 D039-SBVS312-01.gif
VIN = 1.4 V, 6.5 V
Figure 34. Enable Threshold vs Temperature
TPS7A54-Q1 D041-SBVS312-01.gif
VIN = 6.5 V
Figure 36. PG Voltage vs PG Current Sink
TPS7A54-Q1 D043-SBVS312-01.gif
Temperature limited because of power dissipation
Figure 38. Foldback Current Limit vs Temperature
