SCES339F September   2000  – May 2024 SN74LV20A

PRODMIX

  1.   1
  2. 1 Features
  3. 2 Description
  4. 3 Pin Configuration and Functions
  5. 4 Specifications
    1. 4.1  Absolute Maximum Ratings
    2. 4.2  ESD Ratings
    3. 4.3  Recommended Operating Conditions
    4. 4.4  Thermal Information
    5. 4.5  Electrical Characteristics
    6. 4.6  Switching Characteristics, VCC = 2.5 V ± 0.2 V
    7. 4.7  Switching Characteristics, VCC = 3.3 V ± 0.3 V
    8. 4.8  Switching Characteristics, VCC = 5 V ± 0.5 V
    9. 4.9  Noise Characteristics
    10. 4.10 Operating Characteristics
  6. 5 Parameter Measurement Information
  7. 6 Detailed Description
    1. 6.1 Overview
    2. 6.2 Functional Block Diagram
    3. 6.3 Device Functional Modes
  8. 7 Application and Implementation
    1. 7.1 Power Supply Recommendations
    2. 7.2 Layout
      1. 7.2.1 Layout Guidelines
  9. 8 Device and Documentation Support
    1. 8.1 Documentation Support (Analog)
      1. 8.1.1 Related Documentation
    2. 8.2 Receiving Notification of Documentation Updates
    3. 8.3 Support Resources
    4. 8.4 Trademarks
    5. 8.5 Electrostatic Discharge Caution
    6. 8.6 Glossary
  10. 9 Revision History
  11. 10Mechanical, Packaging, and Orderable Information

2 Description

These dual 4-input positive-NAND gates are designed for 2V to 5.5V VCC operation.

Package Information
PART NUMBER PACKAGE(1) PACKAGE SIZE(2) BODY SIZE(3)
SN74LV20A DGV (TVSOP, 14) 3.60mm x 6.4mm 3.60mm x 4.4mm
D (SOIC, 14) 8.65mm x 6mm 8.65mm x 3.9mm
NS (SOP, 14) 10.20mm x 7.8mm 10.3mm x 5.3mm
DB (SSOP, 14) 6.20mm x 7.8mm 6.20mm x 5.3mm
PW (TSSOP, 14) 5.00mm x 6.4mm 5.00mm x 4.4mm
(1) For more information, see Section 10.
(2) The package size (length × width) is a nominal value and includes pins, where applicable.
(3) The body size (length × width) is a nominal value and does not include pins.

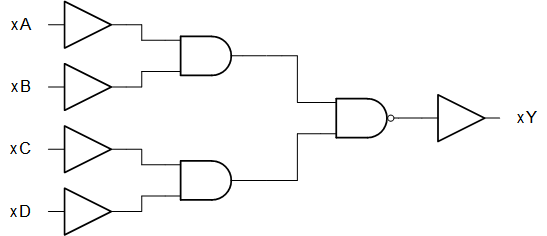

SN74LV20A
