This section provides a Failure Mode Analysis (FMA) for the pins of the TLC6C5748-Q1. The failure modes covered in this document include the typical pin-by-pin failure scenarios:
Table 4-2 through Table 4-5 also indicate how these pin conditions can affect the device as per the failure effects classification in Table 4-1.
Class | Failure Effects |
---|---|
A | Potential device damage that affects functionality |
B | No device damage, but loss of functionality |
C | No device damage, but performance degradation |
D | No device damage, no impact to functionality or performance |

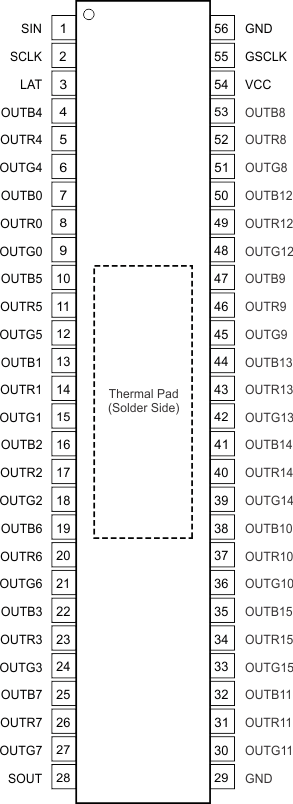

Figure 4-1 shows the TLC6C5748-Q1 pin diagram. For a detailed description of the device pins please refer to the Pin Configuration and Functions section in the TLC6C5748-Q1 data sheet.
Following are the assumptions of use and the device configuration assumed for the pin FMA in this section:
Pin Name | Pin No. | Description of Potential Failure Effect(s) | Failure Effect Class |
---|---|---|---|
SIN | 1 | The host controller can not control the device. | B |
SCLK | 2 | The host controller can not control the device. | B |
LAT | 3 | The host controller can not control the device. | B |
OUTR0-7/OUTG0-7/OUTB0-7 | 4-27 | Device report LOD | B |
SOUT | 28 | The host controller can not read the device. | B |
GND | 29 | No effect | D |
OUTR8-15/OUTG8-15/OUTB8-15 | 30-53 | Device report LOD | B |
VCC | 54 | Device power off | B |
GSCLK | 55 | Device can not output grayscale | B |
GND | 56 | No effect | D |
Pin Name | Pin No. | Description of Potential Failure Effect(s) | Failure Effect Class |
---|---|---|---|
SIN | 1 | The host controller can not control the device. | B |
SCLK | 2 | The host controller can not control the device. | B |
LAT | 3 | The host controller can not control the device. | B |
OUTR0-7/OUTG0-7/OUTB0-7 | 4-27 | Device report LOD | B |
SOUT | 28 | The host controller can not read the device. | B |
GND | 29 | Device not functional | B |
OUTR8-15/OUTG8-15/OUTB8-15 | 30-53 | Device report LOD | B |
VCC | 54 | Device can not power up | B |
GSCLK | 55 | Device can not output grayscale | B |
GND | 56 | Device not functional | B |
Pin Name | Pin No. | Shorted to | Description of Potential Failure Effect(s) | Failure Effect Class |
---|---|---|---|---|
SIN | 1 | SCLK | The host controller can not control the device. | B |
SCLK | 2 | LAT | The host controller can not control the device. | B |
LAT | 3 | OUTB4 | The host controller can not control the device. | B |
OUTB4 | 4 | OUTR4 | Intended functionality | D |
OUTR4 | 5 | OUTG4 | Intended functionality | D |
OUTG4 | 6 | OUTB0 | Intended functionality | D |
OUTB0 | 7 | OUTR0 | Intended functionality | D |
OUTR0 | 8 | OUTG0 | Intended functionality | D |
OUTG0 | 9 | OUTB5 | Intended functionality | D |
OUTB5 | 10 | OUTR5 | Intended functionality | D |
OUTR5 | 11 | OUTG5 | Intended functionality | D |
OUTG5 | 12 | OUTB1 | Intended functionality | D |
OUTB1 | 13 | OUTR1 | Intended functionality | D |
OUTR1 | 14 | OUTG1 | Intended functionality | D |
OUTG1 | 15 | OUTB2 | Intended functionality | D |
OUTB2 | 16 | OUTR2 | Intended functionality | D |
OUTR2 | 17 | OUTG2 | Intended functionality | D |
OUTG2 | 18 | OUTB6 | Intended functionality | D |
OUTB6 | 19 | OUTR6 | Intended functionality | D |
OUTR6 | 20 | OUTG6 | Intended functionality | D |
OUTG6 | 21 | OUTB3 | Intended functionality | D |
OUTB3 | 22 | OUTR3 | Intended functionality | D |
OUTR3 | 23 | OUTG3 | Intended functionality | D |
OUTG3 | 24 | OUTB7 | Intended functionality | D |
OUTB7 | 25 | OUTR7 | Intended functionality | D |
OUTR7 | 26 | OUTG7 | Intended functionality | D |
OUTG7 | 27 | SOUT | The host controller can not control the device. | B |
OUTG11 | 30 | OUTR11 | Intended functionality | D |
OUTR11 | 31 | OUTB11 | Intended functionality | D |
OUTB11 | 32 | OUTG15 | Intended functionality | D |
OUTG15 | 33 | OUTR15 | Intended functionality | D |
OUTR15 | 34 | OUTB15 | Intended functionality | D |
OUTB15 | 35 | OUTG10 | Intended functionality | D |
OUTG10 | 36 | OUTR10 | Intended functionality | D |
OUTR10 | 37 | OUTB10 | Intended functionality | D |
OUTB10 | 38 | OUTG14 | Intended functionality | D |
OUTG14 | 39 | OUTR14 | Intended functionality | D |
OUTR14 | 40 | OUTB14 | Intended functionality | D |
OUTB14 | 41 | OUTG13 | Intended functionality | D |
OUTG13 | 42 | OUTR13 | Intended functionality | D |
OUTR13 | 43 | OUTB13 | Intended functionality | D |
OUTB13 | 44 | OUTG9 | Intended functionality | D |
OUTG9 | 45 | OUTR9 | Intended functionality | D |
OUTR9 | 46 | OUTB9 | Intended functionality | D |
OUTB9 | 47 | OUTG12 | Intended functionality | D |
OUTG12 | 48 | OUTR12 | Intended functionality | D |
OUTR12 | 49 | OUTB12 | Intended functionality | D |
OUTB12 | 50 | OUTG8 | Intended functionality | D |
OUTG8 | 51 | OUTR8 | Intended functionality | D |
OUTR8 | 52 | OUTB8 | Intended functionality | D |
Pin Name | Pin No. | Description of Potential Failure Effect(s) | Failure Effect Class |
---|---|---|---|
SIN | 1 | The host controller can not control the device. | B |
SCLK | 2 | The host controller can not control the device. | B |
LAT | 3 | The host controller can not control the device. | B |
OUTR0-7/OUTG0-7/OUTB0-7 | 4-27 | Device report LSD | B |
SOUT | 28 | The host controller can not control the device. | B |
GND | 29 | Device can not power up | B |
OUTR8-15/OUTG8-15/OUTB8-15 | 30-53 | Device report LSD | B |
VCC | 54 | No effect | D |
GSCLK | 55 | Device can not output grayscale | B |
GND | 56 | Device can not power up | B |
