1 Overview

This document contains information for LM74500-Q1 (SOT-23 8 pin DDF package) to aid in a functional safety system design. Information provided are:

  • Functional Safety Failure In Time (FIT) rates of the semiconductor component estimated by the application of industry reliability standards
  • Component failure modes and their distribution (FMD) based on the primary function of the device
  • Pin failure mode analysis (Pin FMA)

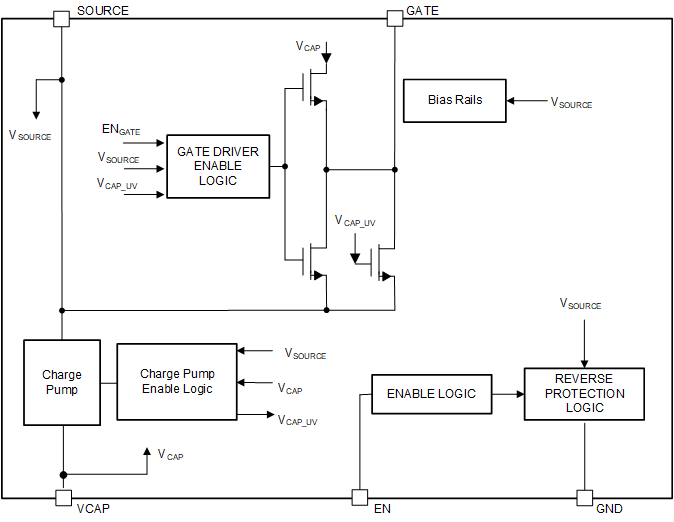

Figure 1-1 shows the device functional block diagram for reference.

GUID-20201209-CA0I-B6HC-M4JQ-LWKWB2DWRT2J-low.gifFigure 1-1 Functional Block Diagram

LM74500-Q1 was developed using a quality-managed development process, but was not developed in accordance with the IEC 61508 or ISO 26262 standards.
