4.2.3 TMS320F280013x MCU Safe State

Referring to Figure 4-6, the Safe state of the TMS320F280013x MCU is defined as one in which:

  • The TMS320F280013x MCU reset is asserted.
  • The power supply to TMS320F280013x MCU is disabled using an external supervisor as a result of Level 3 check failure. In general, a power supply failure is not considered in detail in this analysis as the assumption is that the system-level functionality exists to manage this condition.
  • The external system is informed using one of the IO pins of the C2000 MCU as a result of Level 2 check failure (for example, ERRORSTS pin is asserted).
  • The output of the TMS320F280013x MCU driving the actuator is forced to inactive mode as a result of Level 2 check failure (for example, GPIO pins corresponding to the mission function is tri-stated).
TMS320F280013x MCU Safe State DefinitionFigure 4-6 TMS320F280013x MCU Safe State Definition

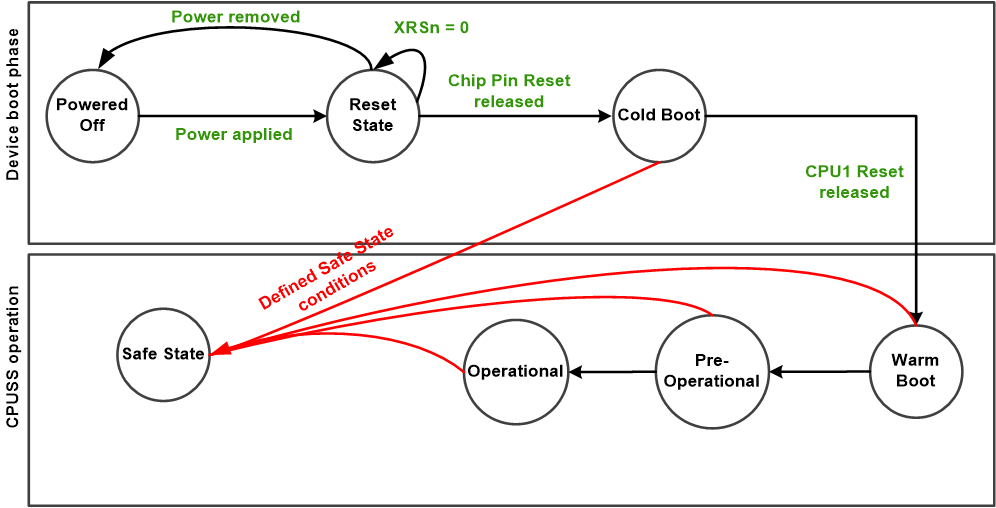

TMS320F280013x MCU Device Operating StatesFigure 4-7 TMS320F280013x MCU Device Operating States
