4.2.2 Fault Tolerant Time Interval (FTTI)

Various functional safety mechanisms in the devices are either always-on (see CPU Handling of Illegal Operation, Illegal Results and Instruction Trapping, and so forth) or executed periodically by the application software. The maximum time that a safety mechanism takes to detect a fault is termed as fault diagnostic test time interval (FDTI). Once the fault is detected, depending on the fault reaction of the associated fault (for example, an external system reaction to an ERRORSTS pin assertion), the system enters the Safe state. The time-span in which a fault, or faults, can be present in a system before a hazardous event occurs is called a fault tolerant time interval (FTTI), as defined in ISO 26262. This is similar to process safety time (PST) defined in IEC 61508. Figure 4-4 illustrates the relationship between FDTI, fault reaction time and FTTI.

Relationship Between FDTI, Fault Reaction Time, and FTTIFigure 4-4 Relationship Between FDTI, Fault Reaction Time, and FTTI

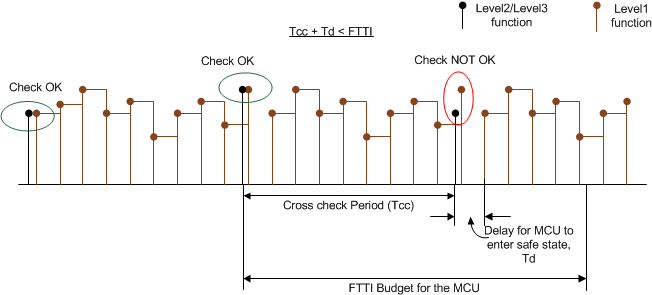

Illustration of FTTIFigure 4-5 Illustration of FTTI

The frequency and extent of each of the checks in the application must be consistent with the fault tolerant time interval (FTTI). Figure 4-5 illustrates the frequency of the required checks. The checks must be such that single point faults of the microcontroller must be detected and responded to, so that the TMS320F280013x MCU enters a Safe state within the FTTI budget. The microcontroller, on detection of a fault, enters into one of the Safe states, as illustrated in Figure 4-6. An example of a diagnostic for single point faults is ECC/Parity for memory.

The proposed functional safety concept, subsequent functional safety features, and configurations explained in this document are for reference purpose only. The system and equipment designer, or manufacturer, is responsible for verifying that the end systems (and any Texas Instruments hardware or software components incorporated in the systems) meet all applicable safety, regulatory, and system-level performance requirements.
