9.3 Downloading Without an IAR License

Use the following steps and the installed IAR Embedded Workbench 5.5 (if a valid IAR Embedded Workbench 5.5 license is not available) to download the executable code:

  1. Open the project workspace as described in Section 9.2: steps – . Connect the board to the MSP-FET430UIF as described in step in Section 9.2.

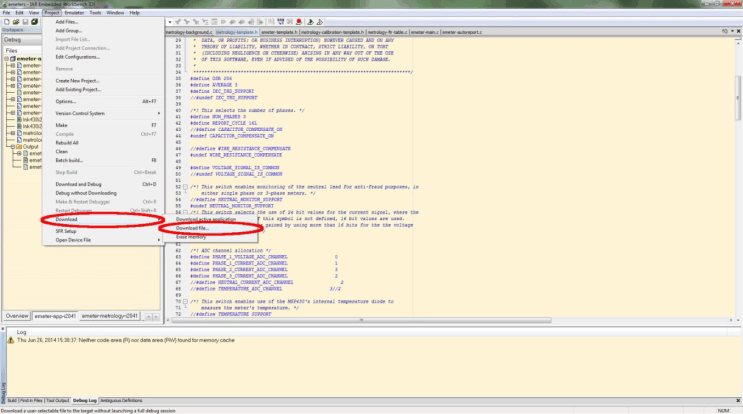

  2. Then select Project → Download → Download File… from the menu, as shown in Figure 9-12.
    GUID-80A2B726-01B8-4455-BFF6-D2FAA912FF7B-low.gifFigure 9-12 Download Executable File

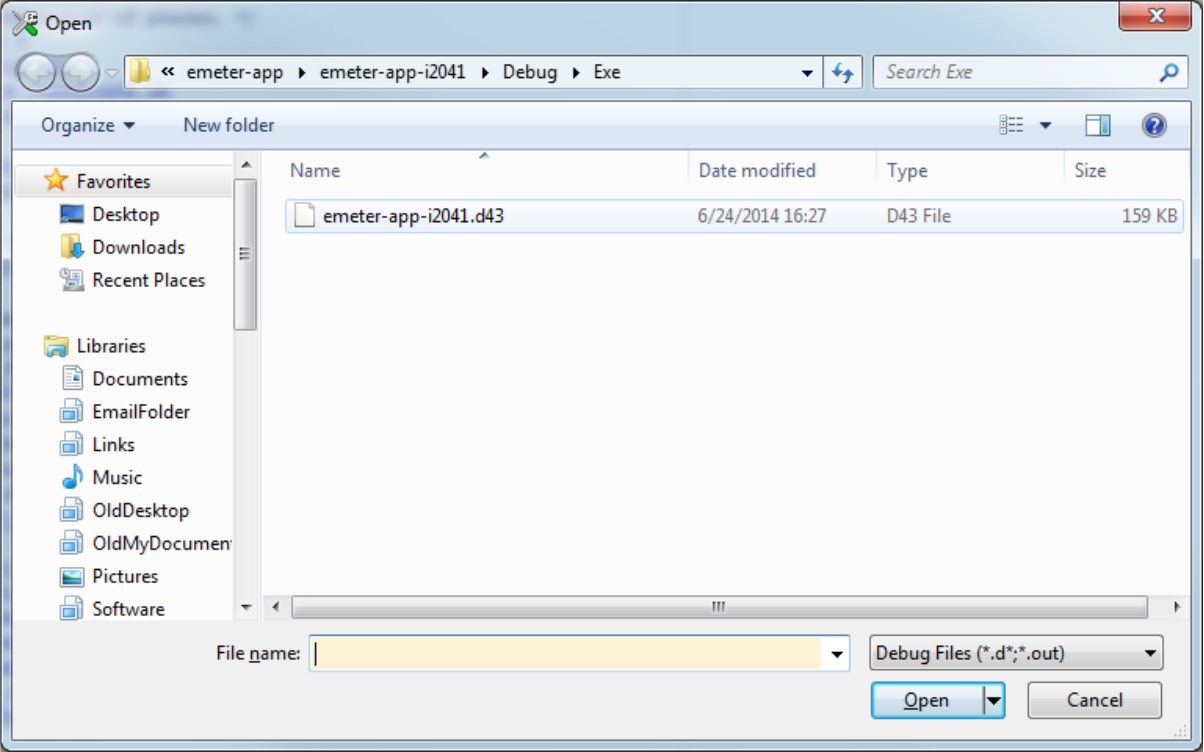

  3. When prompted for selecting the file, select from the folder Submeter i2040 4k_3_SOCK_AUTO_OSR_IAR5.5 \emeter-app\emeter-app-i2041\Debug\Exe. The file is named “emeter-app-i2041.d43”, as shown in Figure 9-13.
    GUID-AE320AF3-A8A6-4EEB-A40C-1CAA9C0DC2D1-low.pngFigure 9-13 Select File to Download
  4. The executable code will be downloaded to the board.
