Table 5-1 PMM, SVS and BOR

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted) (see Figure 5-4)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VBOR, safe Safe BOR power-down level(1) 0.1 V
tBOR, safe Safe BOR reset delay(2) 10 ms
ISVSH,AM SVSH current consumption, active mode VCC = 3.6 V 1.5 µA
ISVSH,LPM SVSH current consumption, low-power modes VCC = 3.6 V 240 nA
VSVSH- SVSH power-down level(3) 1.71 1.80 1.87 V
VSVSH+ SVSH power-up level(3) 1.76 1.88 1.99 V
VSVSH_hys SVSH hysteresis 80 mV
tPD,SVSH, AM SVSH propagation delay, active mode 10 µs
tPD,SVSH, LPM SVSH propagation delay, low-power modes 100 µs
(1) A safe BOR is correctly generated only if DVCC drops below this voltage before it rises.
(2) When an BOR occurs, a safe BOR is correctly generated only if DVCC is kept low longer than this period before it reaches VSVSH+.

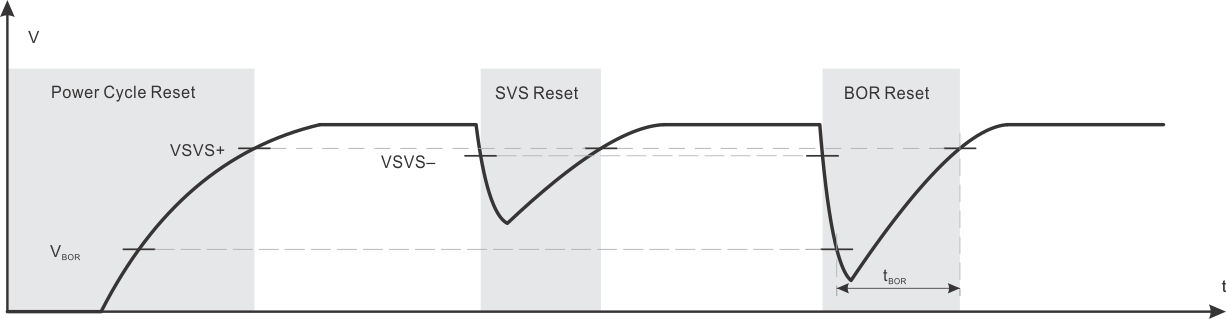

Figure 5-4 shows the reset conditions.

MSP430FR2311 MSP430FR2310 Startup_Condition.gifFigure 5-4 Power Cycle, SVS, and BOR Reset Conditions
