The absolute mode is described in Table 3-7.
Assembler Code | Content of ROM |
---|---|
MOV &EDE,&TONI |
MOV X(0),Y(0) |
X = EDE | |
Y = TONI |
Length: | Two or three words |
Operation: | Move the contents of the source address EDE to the destination address TONI. The words after the instruction contain the absolute address of the source and destination addresses. With absolute mode, the PC is incremented automatically so that program execution continues with the next instruction. |
Comment: | Valid for source and destination |
Example: |

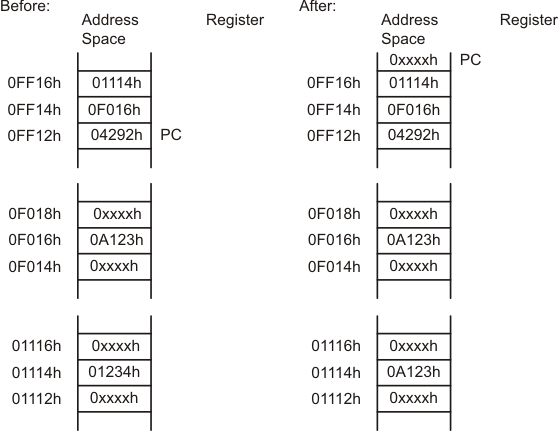

MOV &EDE,&TONI ;Source address EDE = 0F016h
;Dest. address TONI = 01114h
This address mode is mainly for hardware peripheral modules that are located at an absolute, fixed address. These are addressed with absolute mode to ensure software transportability (for example, position-independent code).
