4 ADS78x1EVM Layout

Figure 4-1 to Figure 4-4 illustrate the silkscreens for the ADS78x1EVM.

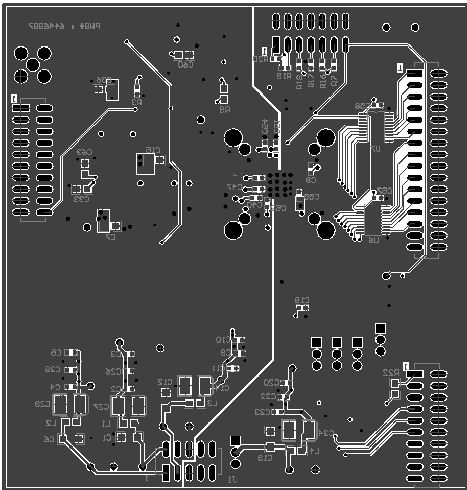

Figure 4-1 Top Layer – Layer 1

Figure 4-2 Ground Plane – Layer 2

Figure 4-3 Power Plane – Layer 3

Figure 4-4 Bottom Layer – Layer 4
