B.11 MSP-TS430PW28A

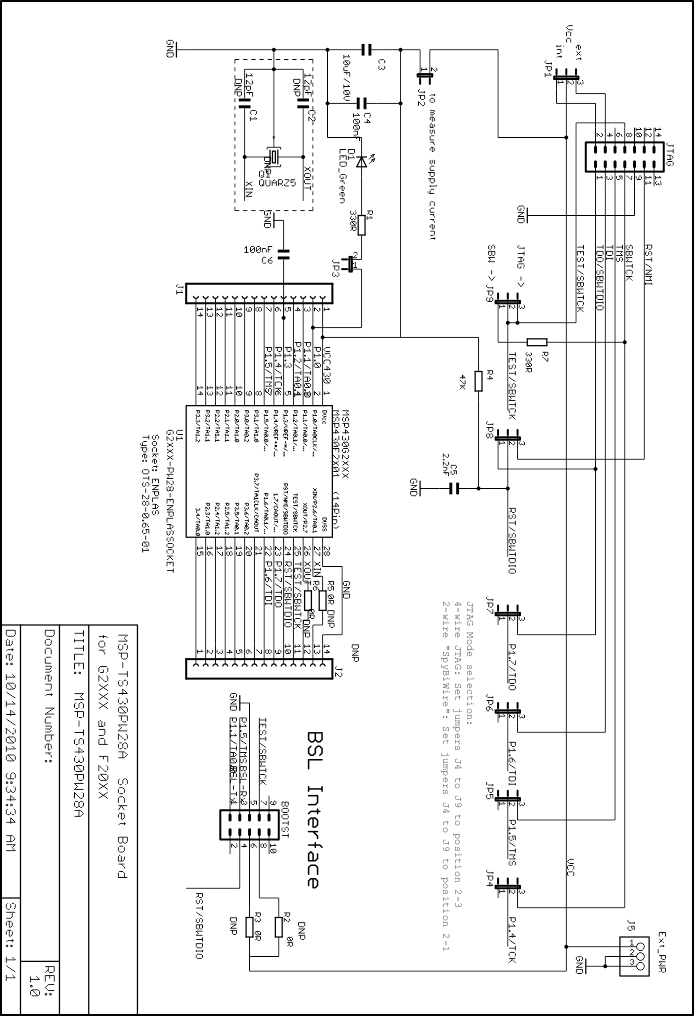

GUID-4D6F8B6F-24B8-4D38-A39C-B7FA14516280-low.gifFigure 4-22 MSP-TS430PW28A Target Socket Module, Schematic
GUID-1AAC9F80-37C9-4B73-B08D-39327EBD5A3F-low.gif Figure 4-23 MSP-TS430PW28A Target Socket Module, PCB (Red)
Note:

For bootloader use, the BSL connector and only one of the resistors R2 or R3 need to be populated. If the board is supplied internally, R3 (0 Ω) must be assembled. If the board is supplied externally, R2 (0 Ω) must be assembled, and R3 must be removed.

Table 4-12 MSP-TS430PW28A Bill of Materials
PositionRef DesNo. per BoardDescriptionDigi-Key Part No.Comment
1C1, C2012pF, SMD0805DNP
2C512.2nF, SMD0805
3C3110uF, 10V, SMD0805
4C4, C6,2100nF, SMD0805478-3351-2-ND
5D11green LED, SMD0805P516TR-ND
6J1, J2014-pin header, THDNP: Headers and receptacles enclosed with kit. Keep vias free of solder: (Header and Receptacle)
7J5, JP1, JP4, JP5, JP6, JP7, JP8, JP983-pin header, male, THSAM1035-03-NDPlace jumper on 1-2 of JP4-JP9 Place on 1-2 on JP1
8JP2, JP322-pin header, male, THSAM1035-02-NDPlace jumper on header
99Jumper15-38-1024-NDsee Pos 7 an 8
10JTAG114-pin connector, male, THHRP14H-ND
11BOOTST0DNP Keep vias free of solder
12Q10CrystalMicro Crystal MS3V 32.768kHz, C(Load) = 12.5pFDNP: keep vias free of solder
13R1, R72330 Ω, SMD0805541-330ATR-ND
14R2, R3,R5, R6,00 Ohm, SMD0805541-000ATR-NDDNP R2, R3,R5, R6
15R4147k Ω, SMD0805541-47000ATR-ND
16U11Socket: OTS-28-0.65-01Manuf.: Enplas
17PCB163.5 x 64.8 mm2 layers
18Adhesive plastic feet4Approximately 6mm width, 2mm heightfor example, 3M Bumpons Part No. SJ-5302Apply to corners at bottom side
19MSP4302MSP430G2553IPW28DNP: enclosed with kit, supplied by TI
