B.19 MSP-TS430PT48A

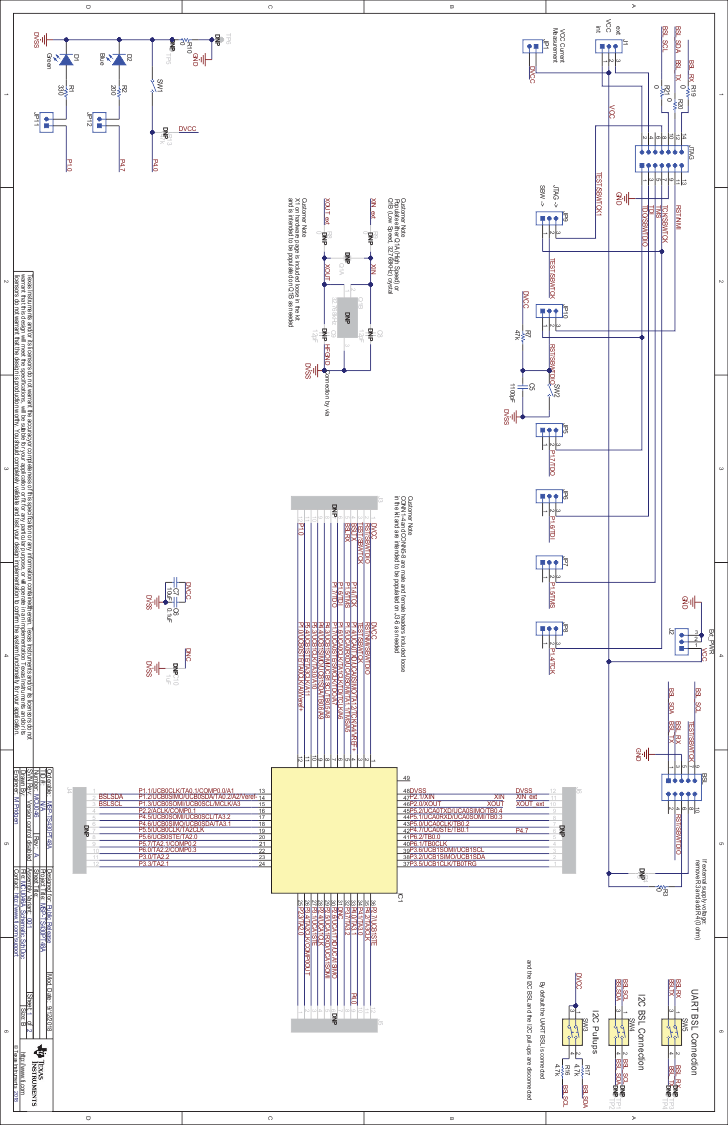

GUID-FF47BF3E-986B-4D36-B54E-280CCFB5CEFA-low.gifFigure 4-38 MSP-TS430PT48A Target Socket Module, Schematic

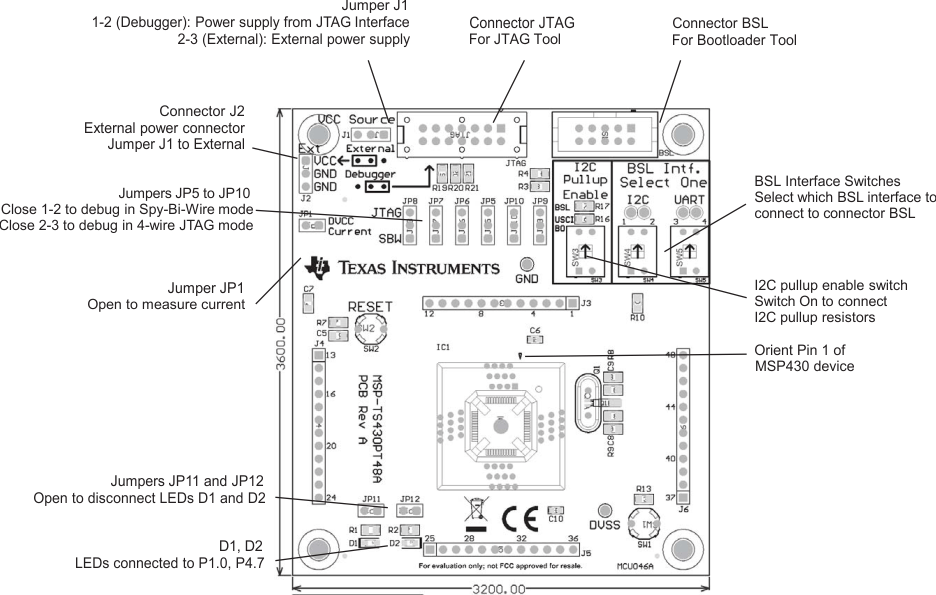

GUID-9B6E84AA-3113-467E-8319-9E31196F0AD3-low.gifFigure 4-39 MSP-TS430PT48A Target Socket Module, PCB
Table 4-20 MSP-TS430PT48A Bill of Materials
Ref DesQuantityValueDescriptionPackage ReferencePart NumberManufacturer
!PCB1Printed Circuit BoardMCU046Any
BSL1Header(Shrouded), 2.54mm, 5x2, Gold, THHeader, 2.54mm, 5x2, THAWHW-10G-0202-TAssman WSW
C511100pFCAP, CERM, 1100 pF, 50 V, +/- 5%, C0G/NP0, 08050805GRM2165C1H112JA01DMuRata
C610.1uFCAP, CERM, 0.1 uF, 16 V, +/- 10%, X7R, 06030603C0603X104K4RACTUKemet
C7110uFCAP, CERM, 10 uF, 16 V, +/- 10%, X5R, 080508050805YD106KAT2AAVX
CONN1, CONN2, CONN3, CONN44Header, 100mil, 12x1, Gold, TH12x1 HeaderTSW-112-07-G-SSamtec
CONN5, CONN6, CONN7, CONN84Receptacle, 2.54mm, 12x1, Gold, THReceptacle, 2.54mm, 12x1, THPPPC121LFBN-RCSullins Connector Solutions
D11GreenLED, Green, SMDLED_0805APT2012LZGCKKingbright
D21BlueLED, Blue, SMDLED_0805150080BS75000Wurth Elektronik
H1, H2, H3, H44Bumpon, Cylindrical, 0.312 X 0.200, BlackBlack BumponSJ61A13M
IC11Socket, QFP-48, 0.5 mm Pitch, www.yamaichi.comSocket, QFP-48, 0.5 mm PitchIC357-0484-142P-2Yamaichi Electronics
J1, J2, JP5, JP6, JP7, JP8, JP9, JP108Header, 100mil, 3x1, Gold, TH3x1 HeaderTSW-103-07-G-SSamtec
JP1, JP11, JP123Header, 100mil, 2x1, Gold, TH2x1 HeaderTSW-102-07-G-SSamtec
JTAG1Header (shrouded), 100 mil, 7x2, Gold, TH7x2 Shrouded HeaderSBH11-PBPC-D07-ST-BKSullins Connector Solutions
R11330RES, 330, 5%, 0.125 W, AEC-Q200 Grade 0, 08050805CRCW0805330RJNEAVishay-Dale
R21200RES, 200, 5%, 0.125 W, AEC-Q200 Grade 0, 08050805CRCW0805200RJNEAVishay-Dale
R3, R10, R19, R20, R2150RES, 0, 5%, 0.333 W, AEC-Q200 Grade 0, 08050805CRCW08050000Z0EAHPVishay-Dale
R7147kRES, 47 k, 5%, 0.125 W, AEC-Q200 Grade 0, 08050805CRCW080547K0JNEAVishay-Dale
R16, R1724.7kRES, 4.7 k, 5%, 0.125 W, AEC-Q200 Grade 0, 08050805CRCW08054K70JNEAVishay-Dale
SH-J1, SH-JP1, SH-JP5, SH-JP6, SH-JP7, SH-JP8, SH-JP9, SH-JP10, SH-JP11, SH-JP12101x2Shunt, 100mil, Gold plated, BlackShuntSNT-100-BK-G
Alternate part number: 969102-0000-DA		Samtec
SW1, SW22Switch, SPST-NO, Off-Mom, 0.02 A, 15 VDC, TH6x6mmEVQ-11A04MPanasonic
SW3, SW4, SW53Switch, DPST, Slide, Off-On, 1 Pos, 0.15A, 30V, TH9.65x7.12mm78F01TGrayhill
X11Crystal, 32.768 kHz, 12.5pF, SMD1.4x1.4x5.0mm SMDMS3V-T1R 32.768KHZ +/-20PPM 12.5PFMicro Crystal AG
C8, C9012pFCAP, CERM, 12 pF, 50 V, +/- 5%, C0G/NP0, 08050805C0805C120J5GACTUKemet
C1001uFCAP, CERM, 1 uF, 50 V, +/- 10%, X5R, 06030603GRM188R61H105KAALDMuRata
FID1, FID2, FID30Fiducial mark. There is nothing to buy or mount.N/AN/AN/A
J3, J4, J5, J60Header, 100mil, 12x1, Gold, TH12x1 HeaderTSW-112-07-G-SSamtec
Q1A0Crystal, 4 MHz, 18 pF, TH11.5x5mm9B-4.000MAAJ-BTXC Corporation
Q1B0Crystal, 32.768 kHz, 12.5pF, SMD1.4x1.4x5.0mm SMDMS3V-T1R 32.768KHZ +/-20PPM 12.5PFMicro Crystal AG
R4, R8, R900RES, 0, 5%, 0.333 W, AEC-Q200 Grade 0, 08050805CRCW08050000Z0EAHPVishay-Dale
R13047kRES, 47 k, 5%, 0.125 W, AEC-Q200 Grade 0, 08050805CRCW080547K0JNEAVishay-Dale
TP1, TP2, TP3, TP4, TP5, TP60Test Point, Miniature, Black, THBlack Miniature Testpoint5001Keystone
