B.37 MSP-TS430PZ100C

GUID-27008BB3-7A95-4653-A55B-EFAB2502E9B1-low.gifFigure 4-74 MSP-TS430PZ100C Target Socket Module, Schematic

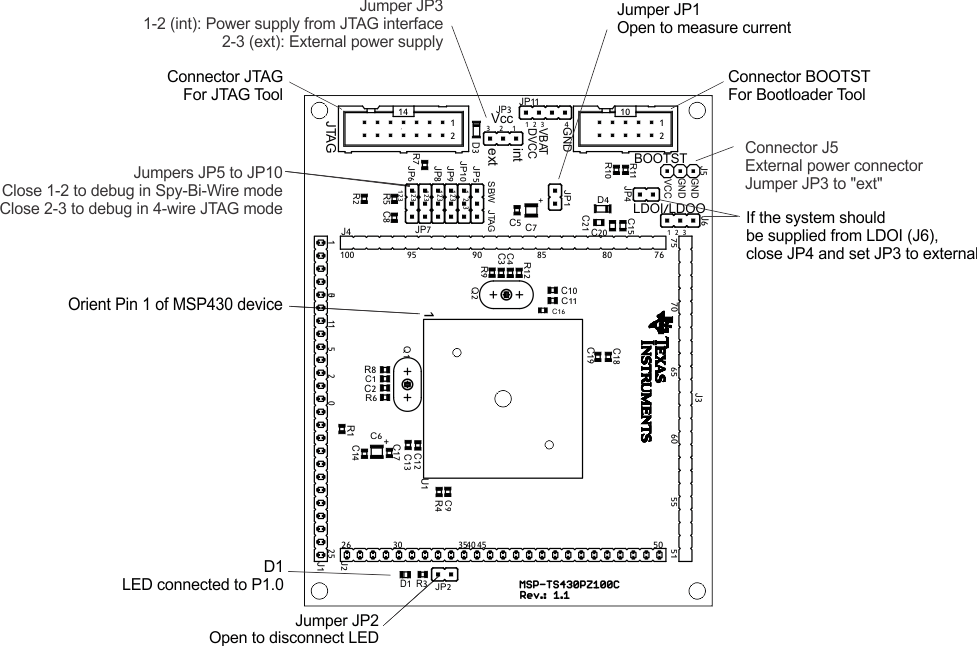

GUID-767DC211-4D9D-4A31-A262-90C2E88D7E13-low.gifFigure 4-75 MSP-TS430PZ100C Target Socket Module, PCB
Note:

For bootloader use, the BSL connector and only one of the resistors R10 or R11 must be populated. If the board is supplied internally, R11 (0 Ω) must be assembled. If the board is supplied externally, R10 (0 Ω) must be assembled, and R11 must be removed.

Table 4-38 MSP-TS430PZ100C Bill of Materials
Pos.Ref DesNumber Per BoardDescriptionDigi-Key Part No.Comment
1C1, C2012pF, SMD0805DNP: C1, C2
1.1C3, C4247pF, SMD0805DNP: C3, C4
2C6, C7210uF, 6.3V, Tantal Size B511-1463-2-ND
3C5, C11, C13, C14, C19, C206100nF, SMD0805311-1245-2-ND
3.1C10, C12, C18,170100nF, SMD0805311-1245-2-NDDNP: C10, C12,C18, C17
4C812.2nF, SMD0805Buerklin 53 D 292
5C91470nF, SMD0805478-1403-2-ND
6D11green LED, SMD0805P516TR-ND
7J1, J2, J3, J4425-pin header, THSAM1029-25-NDDNP: headers and receptacles enclosed with kit. Keep vias free of solder.
7.1425-pin header, THSAM1213-25-NDDNP: headers and receptacles enclosed with kit. Keep vias free of solder.
8J5, J623-pin header, male, THSAM1035-03-ND
9JP5, JP6, JP7, JP8,JP9, JP1063-pin header, male, THSAM1035-03-NDplace jumpers on pins 2-3
10JP1, JP222-pin header, male, THSAM1035-02-NDplace jumper on header
10.1JP412-pin header, male, THSAM1035-02-NDplace jumper on header
11JP313-pin header, male, THSAM1035-03-NDplace jumper on pins 1-2
1210Jumper15-38-1024-NDPlace on: JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8, JP9, JP10
13JTAG114-pin connector, male, THHRP14H-ND
14BOOTST110-pin connector, male, THHRP10H-NDDNP, keep vias free of solder
15Q10Crystal

DNP: Q1

Keep vias free of solder

16Q21CrystalDNP: Q2 Keep vias free of solder
17R3, R72330 Ohm, SMD0805541-330ATR-ND
18R1, R2, R4, R6, R8, R9, R10, R11, R1230 Ohm, SMD0805541-000ATR-NDDNP: R6, R8, R9, R10, R11, R12
19R5147k Ohm, SMD0805541-47000ATR-ND
20U11Socket: IC357-1004-53NManuf.: Yamaichi
21PCB179.5 x 99.5 mmMSP-TS430PZ100C Rev 1.02 layers
22Rubber stand off4Buerklin: 20H1724apply to corners at bottom side
23MSP4302MSP430F643x

DNP: enclosed with kit. Is supplied by TI.

24C1614.7 nF SMD0603Buerklin 53 D 2042
26D3, D42LL103ABuerklin: 24S3406
27JP1114-pin header, male, THSAM1035-04-NDPlace jumper on Pin 1 and Pin 2
28C1514.7 uF, SMD0805Buerklin 53 D 2430
29C211220nF, SMD0805Buerklin 53 D 2381
