B.28 MSP-TS430RGC64USB

Due to the use of diodes in the power chain, the voltage on the MSP430F5xx device is approximately 0.3 V lower than is set by the debugging tool. Set the voltage in the IDE to 0.3 V higher than desired; for example, to run the MCU at 3.0 V, set it to 3.3 V.

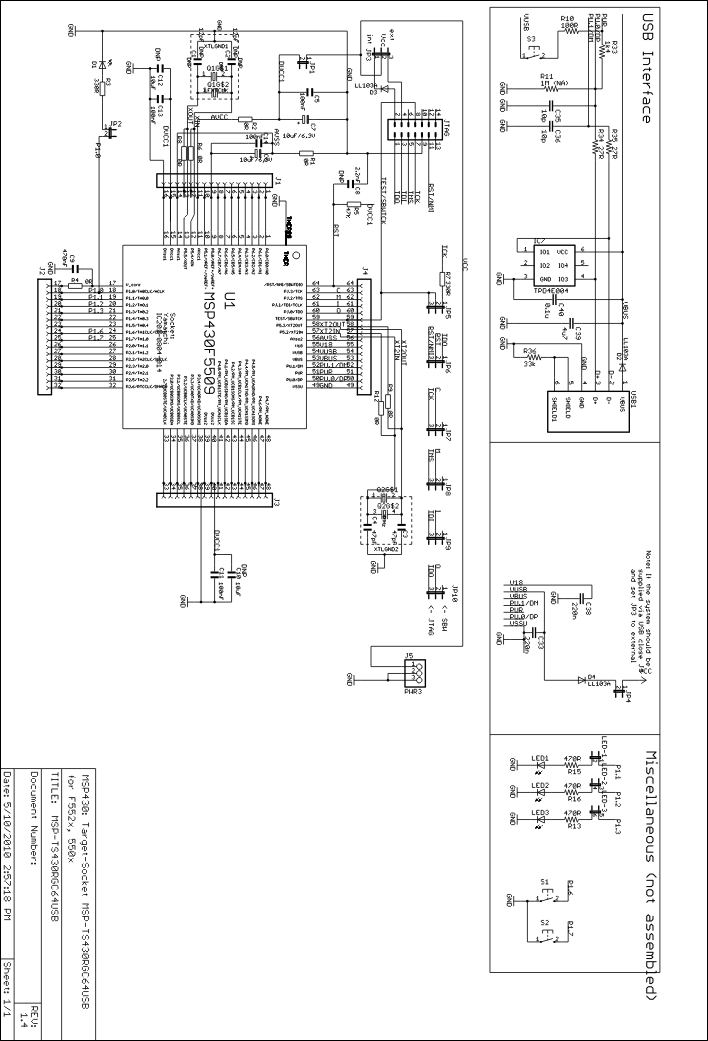

GUID-AE6A707D-CEA6-4B9C-A87E-64F76547200A-low.gif Figure 4-56 MSP-TS430RGC64USB Target Socket Module, Schematic
GUID-182542A2-5DCF-47E4-AEB8-FA3EB4860F37-low.gif Figure 4-57 MSP-TS430RGC64USB Target Socket Module, PCB
Table 4-29 MSP-TS430RGC64USB Bill of Materials
Pos.Ref DesNo. Per BoardDescriptionDigi-Key Part No.Comment
1C1, C2012pF, SMD0805DNP: C1, C2
1.1C3, C4247pF, SMD0805
2C6, C7210uF, 6.3V, Tantal Size B511-1463-2-ND
3C5, C11, C13, C144100nF, SMD0805311-1245-2-ND
3.1C10, C12010uF, SMD0805DNP: C10, C12
4C812.2nF, SMD0805
5C91470nF, SMD0805478-1403-2-ND
6D11green LED, SMD0805P516TR-ND
7J1, J2, J3, J4416-pin header, THDNP: headers and receptacles enclosed with kit. Keep vias free of solder.
SAM1029-16-ND: Header
SAM1213-16-ND: Receptacle
8J513-pin header, male, THSAM1035-03-ND
9JP5, JP6, JP7, JP8, JP9, JP1063-pin header, male, THSAM1035-03-NDplace jumpers on pins 2-3
10JP1, JP2, JP432-pin header, male, THSAM1035-02-NDplace jumper on header
11JP313-pin header, male, THSAM1035-03-NDplace jumper on pins 1-2
1210Jumper15-38-1024-NDPlace on: JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8, JP9, JP10
13JTAG114-pin connector, male, THHRP14H-ND
14Q10CrystalQ1: Micro Crystal MS1V-T1K 32.768kHz, C(Load) = 12.5pFDNP: Q1
Keep vias free of solder
15Q21CrystalQ2: 4MHz Buerklin: 78D134
16R3, R72330 Ω, SMD0805541-330ATR-ND
17R1, R2, R4, R6, R8, R9, R1220 Ω, SMD0805541-000ATR-NDDNP: R4, R6, R8, R9, R12
18R101100 Ω, SMD0805Buerklin: 07E500
18R1111M Ω, SMD0805
18R5147k Ω, SMD0805541-47000ATR-ND
19U11Socket: QFN11T064-006Manuf.: Yamaichi
20PCB179 x 77 mm2 layers
21Rubber stand off4Buerklin: 20H1724Apply to corners at bottom side
22MSP4302MSP430F5509 RGCDNP: enclosed with kit. Is supplied by TI
23Insulating disk to Q21Insulating disk to Q2http://www.ettinger.de/Art_Detail.cfm?ART_ARTNUM=70.08.121
27C331220n SMD0603Buerklin: 53D2074
28C35110p SMD0603Buerklin: 56D102
29C36110p SMD0603Buerklin: 56D102
30C381220n SMD0603Buerklin: 53D2074
31C3914u7 SMD0603Buerklin: 53D2086
32C4010.1u SMD0603Buerklin: 53D2068
33D2, D3, D43LL103ABuerklin: 24S3406
34IC71TPD4E004Manu: TI
36LED0JP3QESAM1032-03-NDDNP
37LED10LEDCHIPLED_0603FARNELL: 852-9833DNP
38LED20LEDCHIPLED_0603FARNELL: 852-9868DNP
39LED30LEDCHIPLED_0603FARNELL: 852-9841DNP
40R13, R15, R160470RBuerklin: 07E564DNP
41R3311k4 / 1k5Buerklin: 07E612
42R34127RBuerklin: 07E444
43R35127RBuerklin: 07E444
44R36133kBuerklin: 07E740
45S10PBP12225STB-ND     DNP
46S20PBP12225STB-ND     DNP
46S31PBP12225STB-ND
47USB11USB_RECEPTACLEFARNELL: 117-7885
