2.2.3.1 Basic Timing

The SBW interface serial communication uses time-division multiplexing and allocates three time slots: TMS_SLOT, TDI_SLOT, and TDO_SLOT. To clock TCLK through the SBW interface in a similar method as it is clocked through TDI during 4-wire JTAG access, an alternative JTAG timing method is implemented. This implementation makes use of the fact that the TDI and TMS signals are captured with the falling edge of SBWTCK in their respective slots as shown in Figure 2-8.

GUID-BB19B44B-1A4B-4BEF-A6BC-F9F15F00C429-low.gifFigure 2-8 Spy-Bi-Wire Timing Diagram

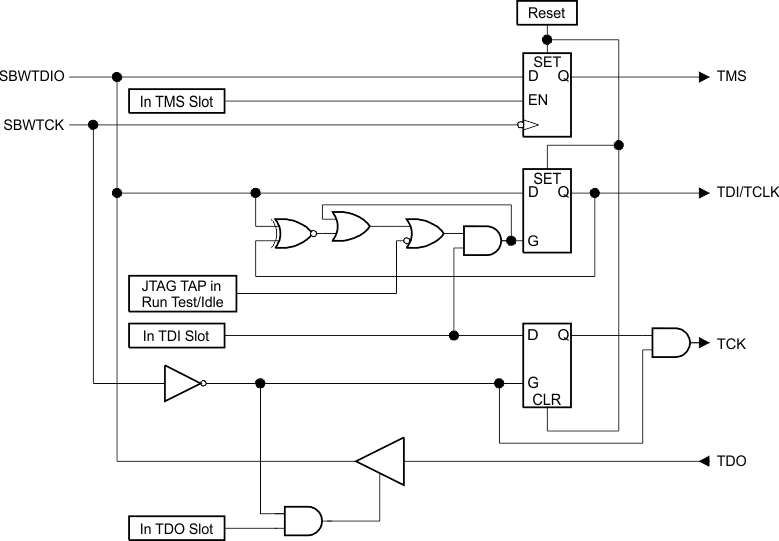

The logic that translates between the 2-wire and 4-wire interfaces is shown in Figure 2-9.

GUID-0939E5F9-2EE4-4829-A13B-01B461750507-low.gifFigure 2-9 SBW-to-JTAG Interface Diagram

The advantages of this implementation are:

  • Data on TDI and data on TDO are aligned.
  • During the TDI_SLOT of the 2-wire interface, SBWTDIO can be used as TCLK input if the JTAG TAP controller is in its Run-Test/Idle state. For this purpose, the TDI output must be synchronized to its input as shown in Figure 2-11. The synchronization logic is only active in the Run-Test/Idle state.

After power up, as long as the SBW interface is not activated yet, TMS and TDI are set to logic 1 level internally.
