2.2.3.5.2 TCLK Strobes

For MSP430 devices from the F1xx, F2xx, G2xx, and F4xx families, a custom number of TCLK clocks can be provided within a single TDI slot (refer to the example projects Replicator430 and Replicator430X). See reference function: TCLKstrobes(). This implementation is not applicable for the F5xx or F6xx devices. For those devices, the flash timing is generated by the internal MODOSC.

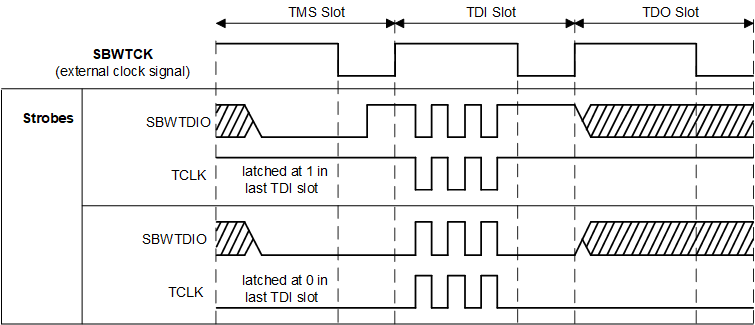

GUID-06A71DA0-C3D2-41E2-866D-23F62FEDB86E-low.gifFigure 2-12 Clocking TCLK Using TCLK Strobes
