SLAU835A December 2020 – February 2022 TAS2563
8 EVM Schematics

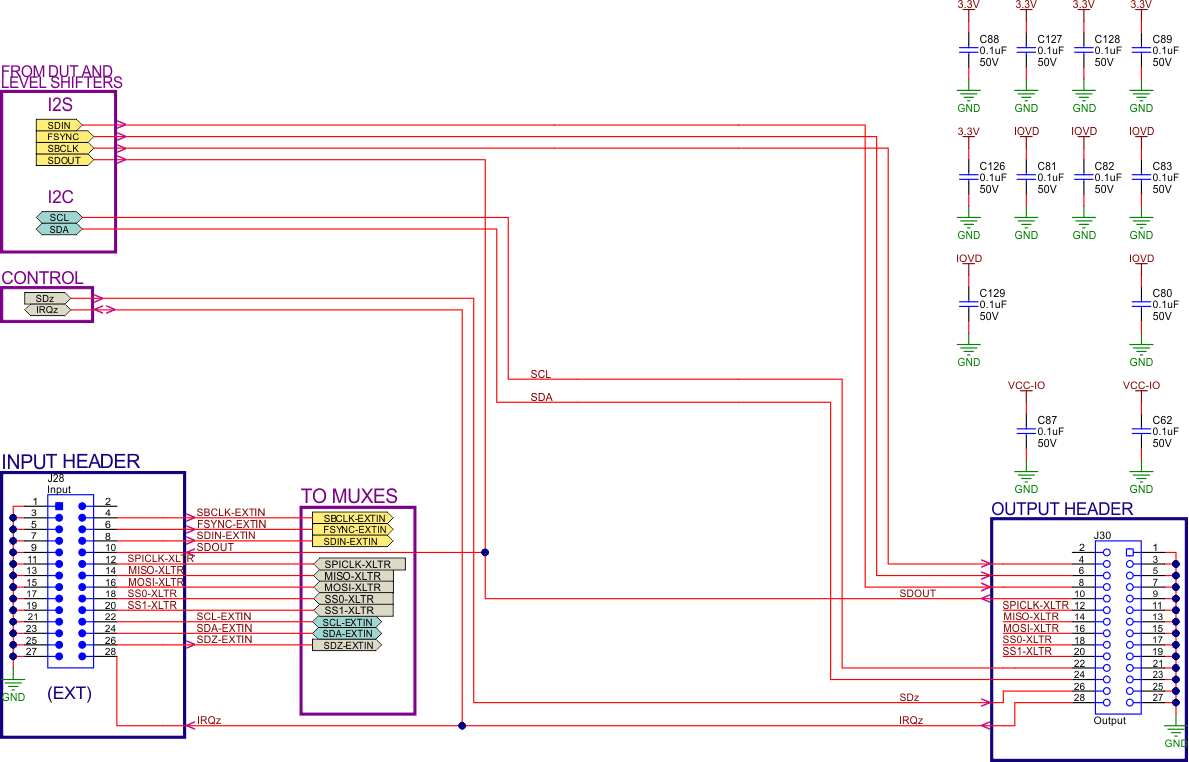

Figure 8-1 TAS2x63EVM Schematic (Sheet 1 of 7)

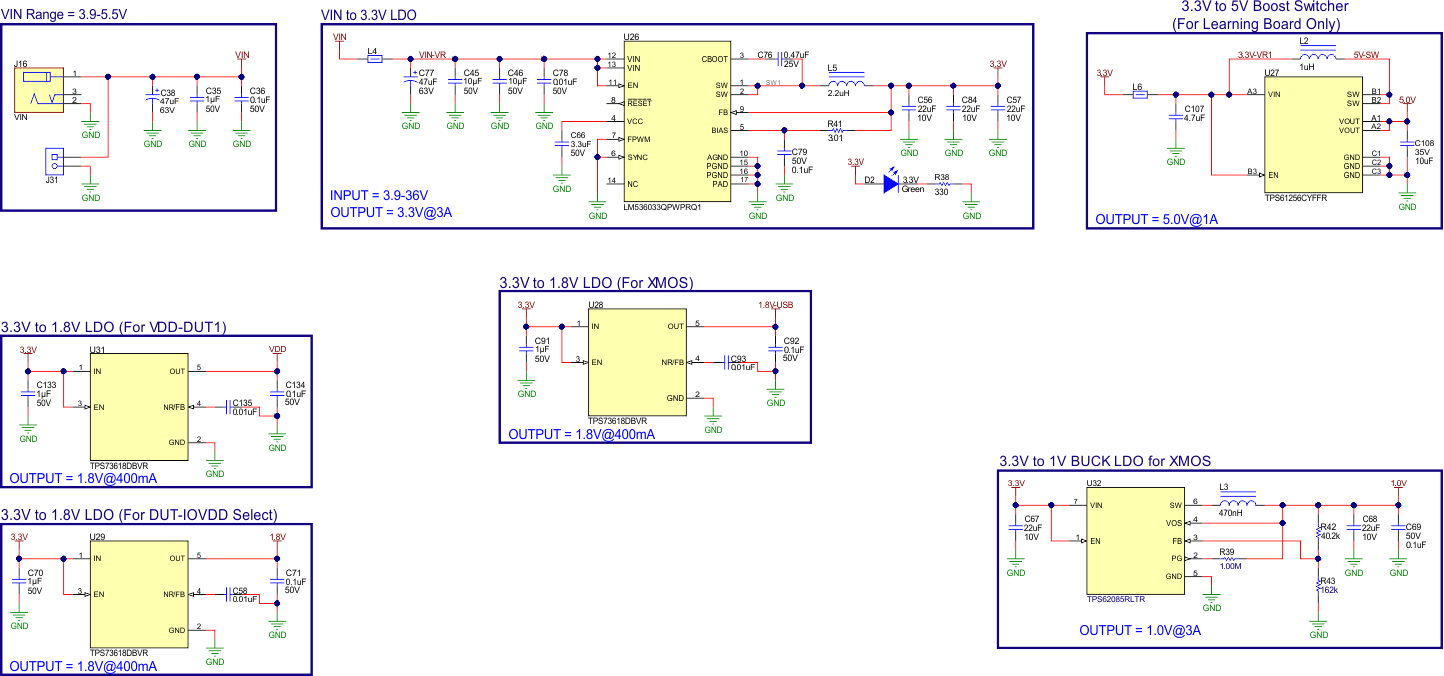

Figure 8-2 TAS2x63EVM Schematic (Sheet 2 of 7)

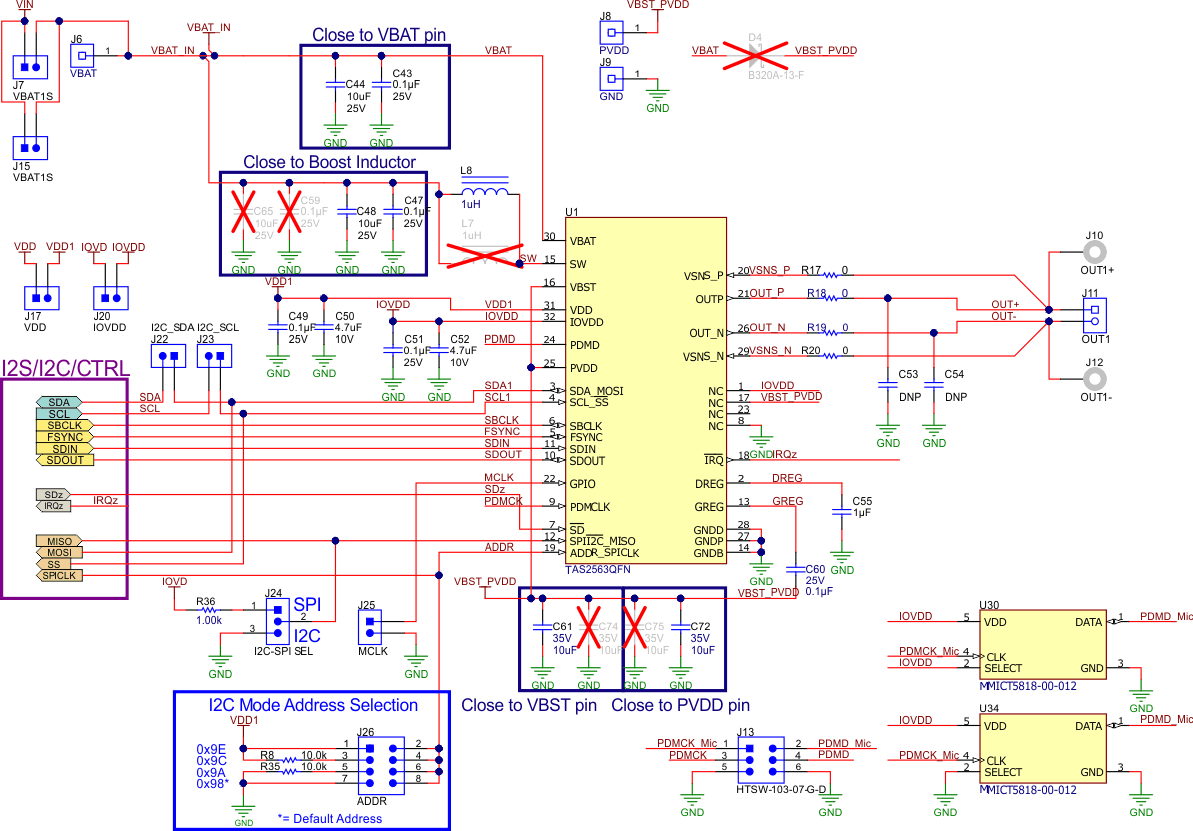

Figure 8-3 TAS2x63EVM Schematic (Sheet 3 of 7)

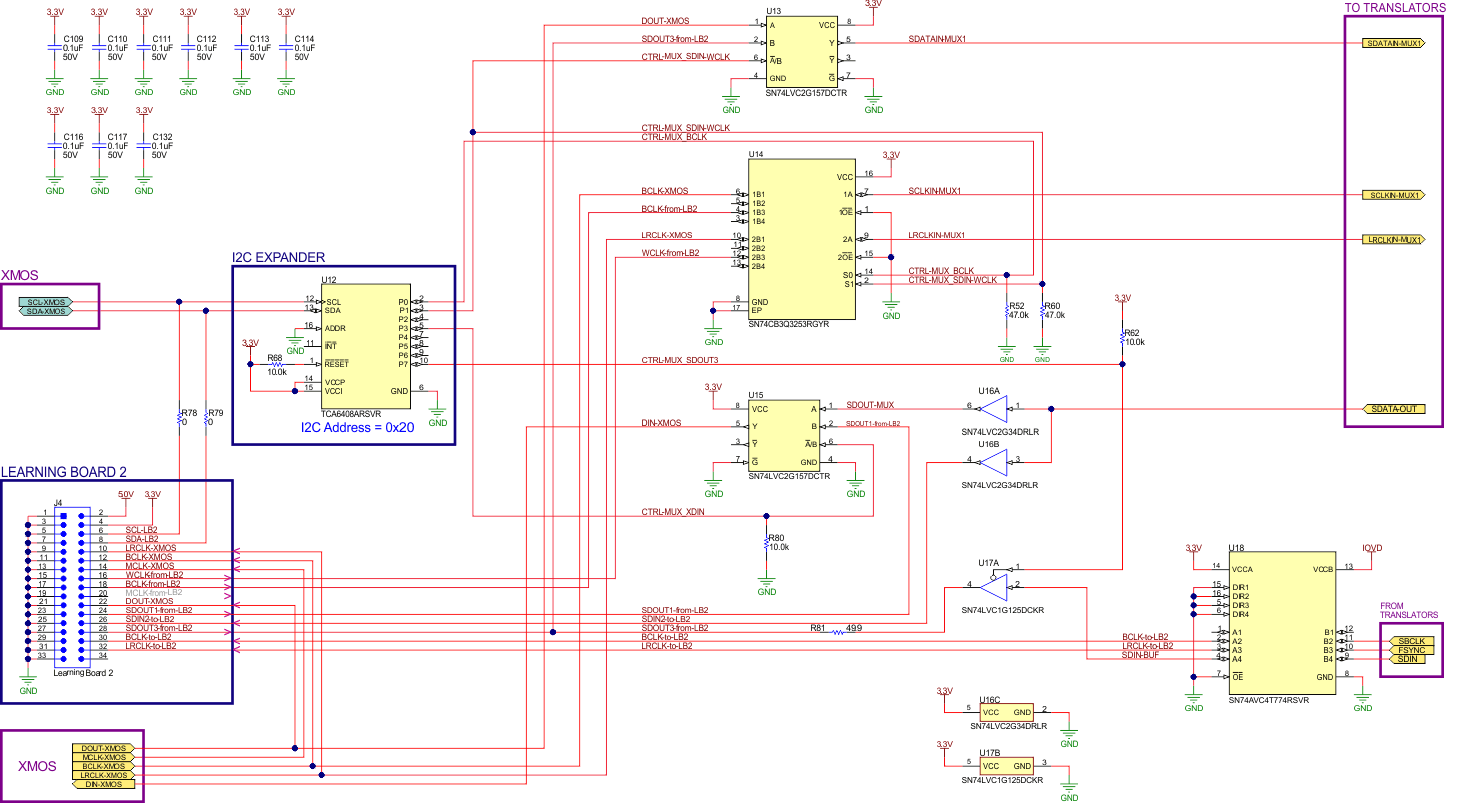

Figure 8-4 TAS2x63EVM Schematic (Sheet 4 of 7)
Figure 8-5 TAS2x63EVM Schematic (Sheet 5 of 7)
Figure 8-6 TAS2x63EVM Schematic (Sheet 6 of 7)
Figure 8-7 TAS2x63EVM Schematic (Sheet 7 of 7)
