7.1 Efficiency Plots


1. The total current in to the VIN, AVIN, and VIN_SAFE pins was considered for this plot with the EXTSUP supply connected to the BOOST converter.
Figure 9. BUCK1 Efficiency Plot for VIN = 13 V

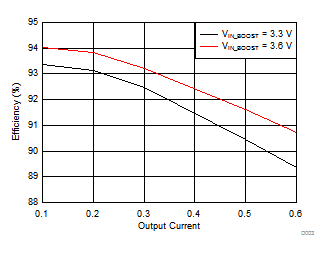

tps65313Q1e1_boost_efficiency_plot.gifFigure 11. BOOST Efficiency Plot

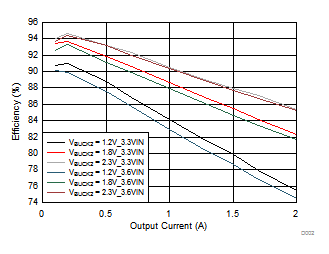

Figure 10. BUCK2 Efficiency Plot
