Typical Characteristics

TA = 25 ºC unless otherwise noted
TPS92830-Q1 D001_CSREG_TEMP_SLDS233.gif
V(IN) = 14 V V(ICTRL) = 1.8 V
Figure 2. Full-Range Current-Sense Voltage vs Ambient Temperature
TPS92830-Q1 D001_SLIS178.gif
V(IN) = 14 V
Figure 4. Current-Sense Voltage vs ICTRL Input Voltage
TPS92830-Q1 D002_SLIS178.gif
V(IN) = 14 V f(PWM)= 200 Hz V(ICTRL) = 1.8 V
Figure 6. Duty Cycle of PWM Dimming-Current Output vs PWM Input Duty Cycle
TPS92830-Q1 Typ_App_1_PWM_Pulse_SLIS178.gif
Ch. 1 = PWM1 Ch. 2 = G1 Ch. 3 = SENSE1
Ch. 4 = I(OUT1) V(IN) = 14 V
Figure 8. PWM Dimming
TPS92830-Q1 Typ_App_4_UnderVoltage_SLIS178.gif
Ch. 1 = V(IN) Ch. 2 = G1 Ch. 3 = SENSE1
Ch. 4 = I(OUT1)
Figure 10. Undervoltage
TPS92830-Q1 Typ_App_6_Jump_Start_SLIS178.gif
Ch. 1 = V(IN) Ch. 2 = G1 Ch. 3 = SENSE1
Ch. 4 = I(OUT1)
Figure 12. Jump Start
TPS92830-Q1 Typ_App_3_ColdCrank_SLIS178.gif
Ch. 1 = V(IN) Ch. 2 = G1 Ch. 3 = SENSE1
Ch. 4 = I(OUT1)
Figure 14. Fast Power Down and Slow Power Up
TPS92830-Q1 Typ_App_8_Slow_Ramp_Down_Slow_Ramp_Up_SLIS178.gif
Ch. 1 = V(IN) Ch. 2 = G1 Ch. 3 = SENSE1
Ch. 4 = I(OUT1)
Figure 16. Slow Decrease and Slow Increase of Supply Voltage
TPS92830-Q1 Typ_App_10_Short_To_Ground_SLIS178.gif
Ch. 1 = FAULT Ch. 2 = SENSE1 Ch. 3 = G1
Ch. 4 = I(OUT1) LED short-to-ground on SENSE1
Figure 18. LED Hard Short Protection and One-Fails–All-Fail
TPS92830-Q1 D002_CSREG_SUPPLY_SLDS233.gif
V(ICTRL) = 1.8 V
Figure 3. Full-Range Current-Sense Voltage vs Supply Voltage
TPS92830-Q1 D003_IQ_SUPPLY_SLDS233.gif
Figure 5. Device Current vs Supply Voltage
TPS92830-Q1 D003_SLIS178.gif
V(IN) = 14 V
Figure 7. Current-Derating Profile; Output-Current Ratio vs DERATE Voltage

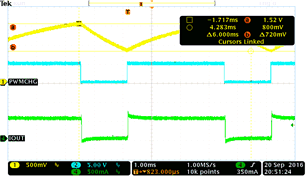

TPS92830-Q1 Typ_App_2_PWM_Generator_SLIS178.gif
Ch. 1 = PWMCHG Ch. 2 = PWMOUT Ch. 4 = I(OUT1)
V(IN) = 14 V
Figure 9. PWM Generator
TPS92830-Q1 Typ_App_5_Transient_Voltage_SLIS178.gif
Ch. 1 = V(IN) Ch. 2 = G1 Ch. 3 = SENSE1
Ch. 4 = I(OUT1)
Figure 11. Transient Overvoltage
TPS92830-Q1 Typ_App_6_Superimposed_15Hz_SLIS178.gif
Ch. 1 = V(IN) Ch. 2 = G1 Ch. 3 = SENSE1
Ch. 4 = I(OUT1) ƒ = 15 Hz
Figure 13. Superimposed Alternating Voltage
TPS92830-Q1 Typ_App_7_Slow_Ramp_Down_SLIS178.gif
Ch. 1 = V(IN) Ch. 2 = G1 Ch. 3 = SENSE1
Ch. 4 = I(OUT1)
Figure 15. Slow Decrease, Quick Increase of Supply Voltage
TPS92830-Q1 Typ_App_9_Open_Circuit_SLIS178.gif
Ch. 1 = FAULT Ch. 2 = SENSE1 Ch. 3 = SENSE2
Ch. 4 = SENSE3 LED open-circuit on SENSE1
Figure 17. LED Open-Circuit Protection and One-Fails–All-Fail
TPS92830-Q1 Typ_App_11_Start_Delay_SLIS178.gif
Ch. 1 = V(IN) Ch. 2 = CP1N Ch. 3 = CPOUT
Figure 19. Device Start-Up Delay
