Parameter Measurement Information

GUID-1D0BDDC9-064D-42A6-B382-7780C3D3B767-low.gif Figure 9-1 Driver Voltage, Current and Test Definitions
GUID-69E3BC13-CE1C-401C-9427-530BB4C95676-low.gif Figure 9-2 Bus Logic State Voltage Definitions
Figure 9-3 Driver Test Circuit and Voltage Waveforms. GUID-20200710-SS0I-NBFX-Q4QZ-7HFQ1XSKVLFK-low.gif

The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

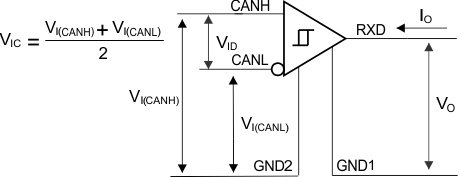

GUID-997DDC9D-D58F-45BC-A617-198C87B77F45-low.gif Figure 9-4 Receiver Voltage and Current Definitions
The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
Figure 9-5 Receiver Test Circuit and Voltage Waveforms
Table 9-1 Receiver Differential Input Voltage Threshold Test
INPUT OUTPUT
VCANH VCANL |VID| RXD
-11.5 V -12.5 V 1000 mV L VOL
12.5 V 11.5 V 1000 mV L
-8.55 V -9.45 V 900 mV L
9.45 V 8.55 V 900 mV L
-8.75 V -9.25 V 500 mV H VOH
9.25 V 8.75 V 500 mV H
-11.8 V -12.2 V 400 mV H
12.2 V 11.8 V 400 mV H
Open Open X H
GUID-E131902A-1DC9-405D-9BF8-1D78FFF841E6-low.gif Figure 9-6 tLOOP and CAN FD Timing Parameter Measurement
The input pulse is supplied by a generator having the following characteristics: tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.
Figure 9-7 Dominant Time-out Test Circuit and Voltage Waveforms
GUID-CB6D291F-6D68-4FF2-9122-A5B7E2A912AE-low.gif Figure 9-8 Driver Short-Circuit Current Test Circuit and Waveforms

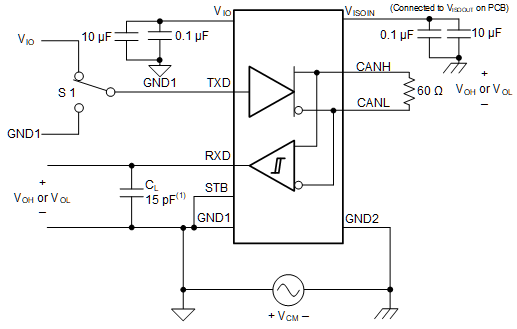

GUID-20210505-CA0I-FV7V-TZNH-2KVSVVGFF2ZL-low.gif Figure 9-9 Common-Mode Transient Immunity Test Circuit
VCCI and VCCO refers to the power supplies VIO and VISOIN, respectively. CL = 15 pF and The input pulse is supplied by a generator having the following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns, tf ≤ 3ns, ZO = 50 Ω. At the input, 50 Ω resistor is required to terminate Input Generator signal. It is not needed in actual application.
B. CL = 15 pF and includes instrumentation and fixture capacitance within ±20%.
Figure 9-10 Switching Characteristics Test Circuit and Voltage Waveforms
