Typical Characteristics

UCC28950 UCC28951 UVLO

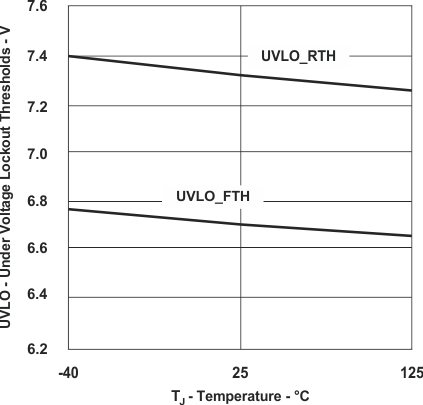

                        Thresholds vs TemperatureFigure 5-3 UVLO Thresholds vs Temperature
UCC28950 UCC28951 Supply Current vs TemperatureFigure 5-5 Supply Current vs Temperature
UCC28950 UCC28951 Voltage Reference (VDD = 12V) vs TemperatureFigure 5-7 Voltage Reference (VDD = 12V) vs Temperature
UCC28950 UCC28951 Short-Circuit Current vs TemperatureFigure 5-9 Short-Circuit Current vs Temperature
UCC28950 UCC28951 Nominal Switching Frequency vs TemperatureFigure 5-11 Nominal Switching Frequency vs Temperature
UCC28950 UCC28951 Error
                        Amplifier Offset Voltage vs TemperatureFigure 5-13 Error Amplifier Offset Voltage vs Temperature
UCC28950 UCC28951 ISS Charge Current vs TemperatureFigure 5-15 ISS Charge Current vs Temperature
UCC28950 UCC28951 SS
                        Pullup Threshold vs TemperatureFigure 5-17 SS Pullup Threshold vs Temperature
UCC28950 UCC28951 Current Sense Cycle-by-Cycle Limit vs TemperatureFigure 5-19 Current Sense Cycle-by-Cycle Limit vs Temperature
UCC28950 UCC28951 Outputs Sink Resistance vs TemperatureFigure 5-21 Outputs Sink Resistance vs Temperature
UCC28950 UCC28951 Outputs Source Resistance vs TemperatureFigure 5-23 Outputs Source Resistance vs Temperature
UCC28950 UCC28951 Dead
                        Time Delay vs TemperatureFigure 5-25 Dead Time Delay vs Temperature
UCC28950 UCC28951 DCM
                        Threshold vs TemperatureFigure 5-27 DCM Threshold vs Temperature
UCC28950 UCC28951 UVLO
                        Hysteresis vs TemperatureFigure 5-4 UVLO Hysteresis vs Temperature
UCC28950 UCC28951 Start-Up Current vs TemperatureFigure 5-6 Start-Up Current vs Temperature
UCC28950 UCC28951 Line
                        Voltage Regulation (ILOAD = 10mA) vs TemperatureFigure 5-8 Line Voltage Regulation (ILOAD = 10mA) vs Temperature
UCC28950 UCC28951 Maximum Duty Cycle vs TemperatureFigure 5-10 Maximum Duty Cycle vs Temperature
UCC28950 UCC28951 Maximum Switching Frequency vs TemperatureFigure 5-12 Maximum Switching Frequency vs Temperature
UCC28950 UCC28951 Voltage Error Amplifier (Open-Loop Gain) vs TemperatureFigure 5-14 Voltage Error Amplifier (Open-Loop Gain) vs Temperature
UCC28950 UCC28951 Shutdown, Restart, and Reset Threshold vs TemperatureFigure 5-16 Shutdown, Restart, and Reset Threshold vs Temperature
UCC28950 UCC28951 SS
                        Clamp Voltage vs TemperatureFigure 5-18 SS Clamp Voltage vs Temperature
UCC28950 UCC28951 Current Sense Propagation Delay vs TemperatureFigure 5-20 Current Sense Propagation Delay vs Temperature
UCC28950 UCC28951 Outputs Sink Resistance vs TemperatureFigure 5-22 Outputs Sink Resistance vs Temperature
UCC28950 UCC28951 Outputs Source Resistance vs TemperatureFigure 5-24 Outputs Source Resistance vs Temperature
UCC28950 UCC28951 Dead
                        Time Delay vs TemperatureFigure 5-26 Dead Time Delay vs Temperature
