6.6 Typical Characteristics

TPS56C230 D001-SupplyCurrent.gif
VEN = 5 V
Figure 1. Supply Current vs Junction Temperature
TPS56C230 D003-VFB.gif
1.
Figure 3. Feedback Voltage vs Junction Temperature
TPS56C230 D005-ENoff.gif
1.
Figure 5. Enable Off Voltage vs Junction Temperature

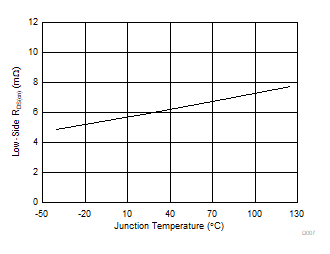

TPS56C230 D007-RDSL.gif
1.
Figure 7. Low-Side RDS(on) vs Junction Temperature
TPS56C230 D009-UVP.gif
1.
Figure 9. UVP Threshold vs Junction Temperature
TPS56C230 D011-OC.gif
1.
Figure 11. Valley Current Limit vs Junction Temperature
TPS56C230 D013-EfficiencyEco.gif
1.
Figure 13. Efficiency vs Load Current, Eco-mode
TPS56C230 D017-FswEco.gif
1.
Figure 15. Switching Frequency vs Load Current, Eco-mode
TPS56C230 D002-ShutdownCurrent.gif
VEN = 0 V
Figure 2. Shutdown Current vs Temperature
TPS56C230 D004-EN.gif
1.
Figure 4. Enable On Voltage vs Junction Temperature

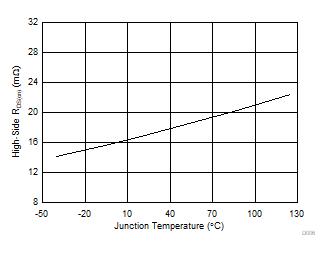

TPS56C230 D006-RDSH.gif
1.
Figure 6. High-Side RDS(on) vs Junction Temperature
TPS56C230 D008-OVP.gif
1.
Figure 8. OVP Threshold vs Junction Temperature
TPS56C230 D010-DischargeR.gif
1.
Figure 10. Discharge Resistor vs Junction Temperature
TPS56C230 D012-SSTime.gif
1.
Figure 12. Soft-Start Time vs Junction Temperature
TPS56C230 D014-EfficiencyFccm.gif
1.
Figure 14. Efficiency vs Load Current, FCCM
TPS56C230 D018-FswFccm.gif
1.
Figure 16. Switching Frequency vs Load Current, FCCM
