8.2 Typical Application

The LMR51603-Q1 only requires a few external components to convert from a wide voltage range supply to a fixed output voltage. The following image shows a basic schematic.

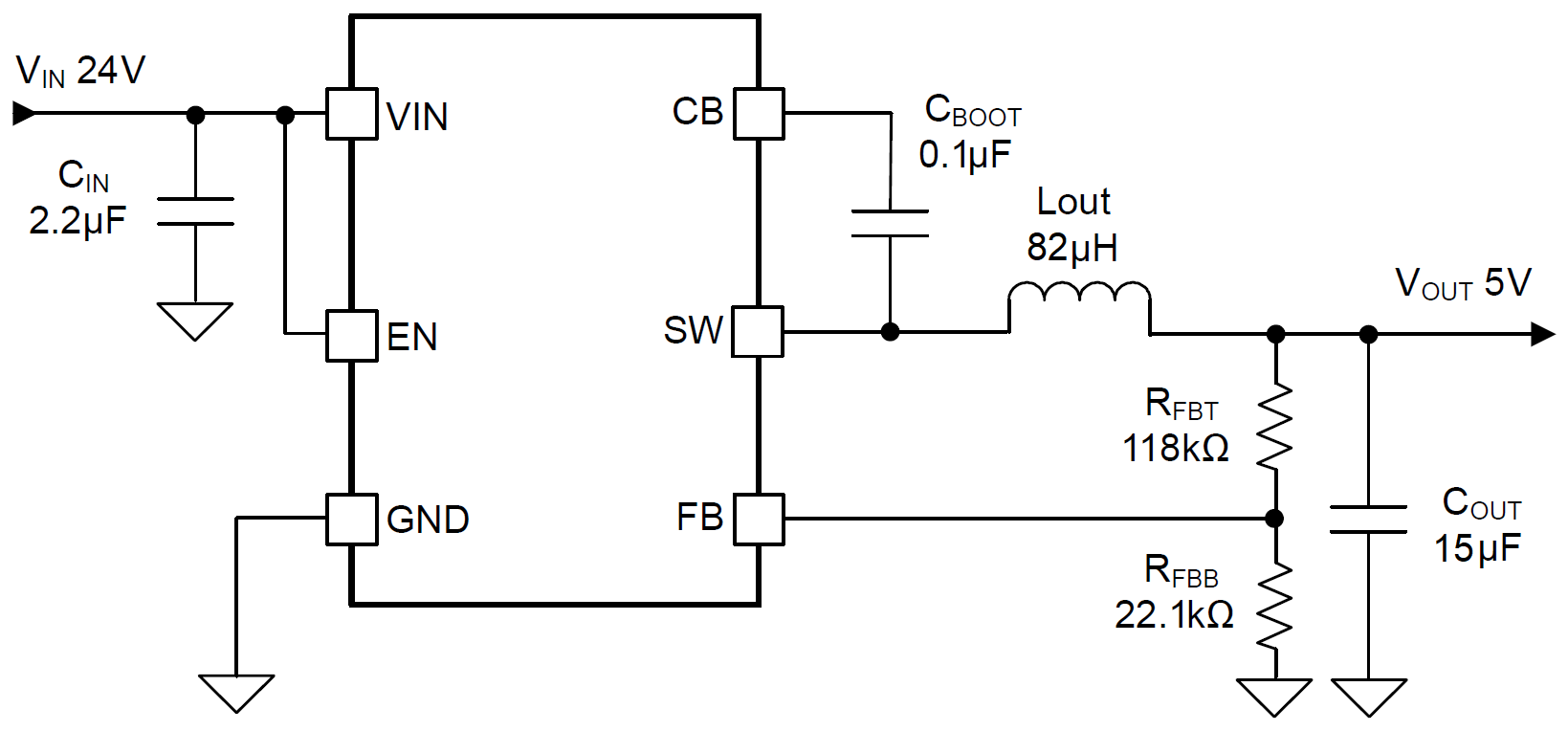

LMR51603-Q1 Application CircuitFigure 8-1 Application Circuit

The external components must fulfill the needs of the application and the stability criteria of the control loop of the device. The following table can be used to simplify the output filter component selection.

Table 8-1 L and COUT Typical Values
fSW (kHz)VOUT (V)

IOUT (mA)

L (µH)COUT(1)RFBT (kΩ)RFBB (kΩ)
4003.3

300

56

22µF / 10V

69.8

22.1

5

300

82

15µF / 16V118

22.1

12

300

150

2 × 4.7µF / 35V

309

22.1

(1) A ceramic capacitor is used in this table.
