7.3 Cell Balancing Operation

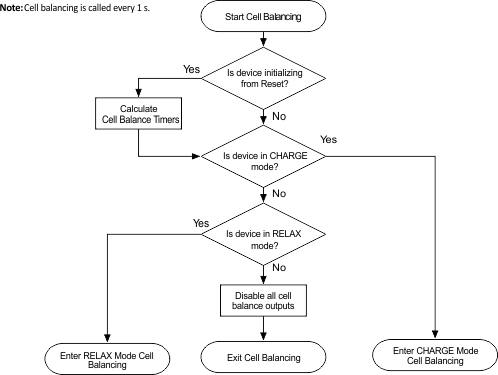

GUID-2B9CA105-6D35-4992-A482-ABE35D25145C-low.gifFigure 7-4 Cell Balance Mode Detection

The BQ28Z610 calls the cell balancing algorithm every 1 s during normal operation. Cell balancing is not called when the device is in SLEEP mode. All algorithm selections are made on this same 1-s timer.

In RELAX mode, if cell balancing at rest is enabled, Balancing Configuration[CBR] = 1. The gauge will verify if the dv/dt condition is met at the entry of the RELAX mode. If so, then the cell balancing at rest will start when all of the conditions below are met:

  • Any pre-calculated Cell Balance Timer is non-zero AND
  • RelativeStateofCharge() > Min RSOC for Balancing

The gauge will attempt to recalculate the cell balancing time in RELAX mode every Relax Balance Interval. The cell balancing time is updated if the conditions below are met:

  • The Relax Balance Interval has passed AND
  • A OCV measurement is taken AND
  • The max cell voltage delta > Min Start Balance Delta

On exit of the RELAX mode, cell balancing time is recalculated as long as a valid OCV update is available.

Note:

Cell balancing is paused during OCV measurement.

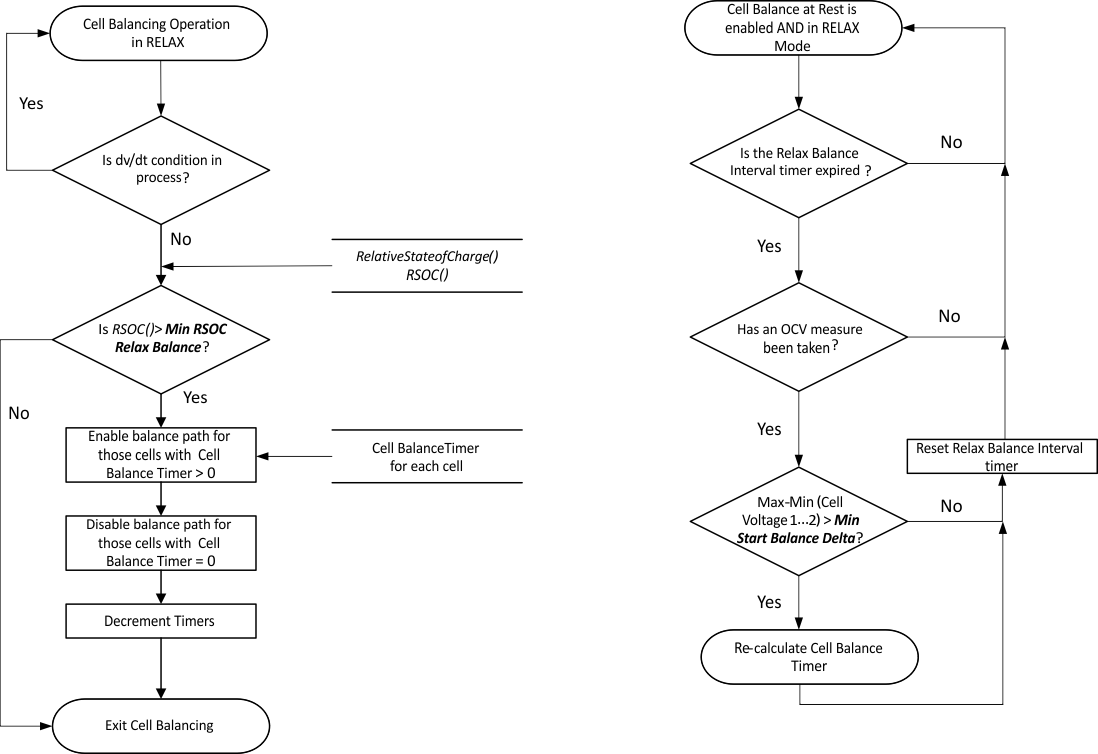

GUID-883A217F-59BB-464A-A725-1AC1C220FCF3-low.gifFigure 7-5 Cell Balance Operation in RELAX Mode

When the BQ28Z610 is in CHARGE mode, it follows these steps during cell balancing:

  1. Check if any of the precalculated Cell Balance Timers are > 0.
  2. The cell balance FETs are turned ON for the corresponding cell balance timers that are ≠ 0.
Note:

There are no SOC restrictions controlling the enabling of cell balancing in CHARGE mode.

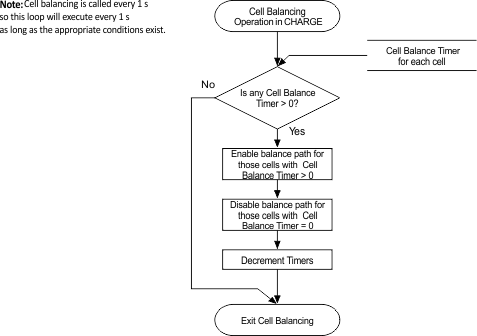

GUID-070C921B-F846-44EE-B15F-049235536923-low.gif Figure 7-6 Cell Balance Operation in CHARGE Mode
