6.1 Power Up

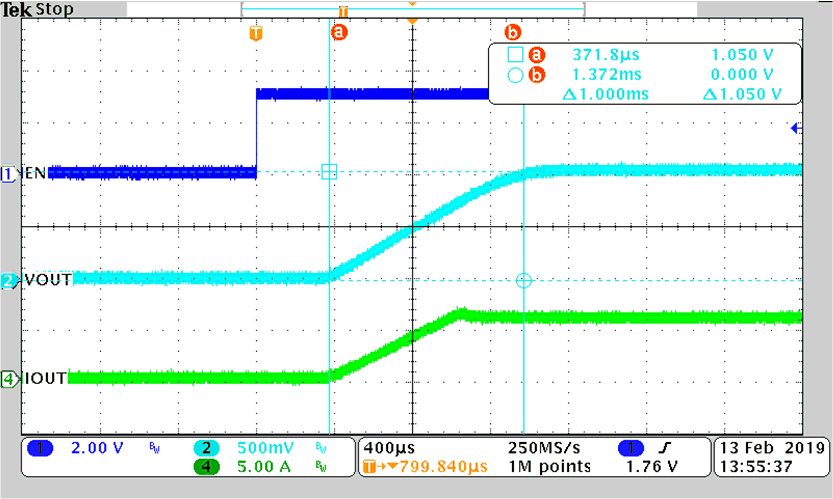

Figure 6-1 shows the power up waveform at 12-V input and 1.05-V output. Once the EN signal is high, VOUT starts to ramp up.

GUID-DF49C9D6-E90A-4F09-85E0-E03336C701A4-low.gifFigure 6-1 Power up with 6 A loading controlled by EN pin
