4.4 Load Regulation

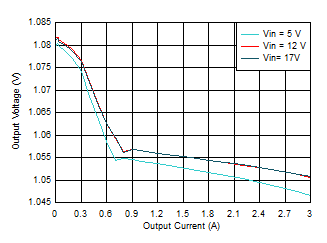

The load regulation for the TPS563202EVM is shown in Figure 4-4.

GUID-20200722-CA0I-HJWH-9MJL-N73J8BVS8S9L-low.gifFigure 4-4 TPS563202EVM Load Regulation
