4.9 Start-Up

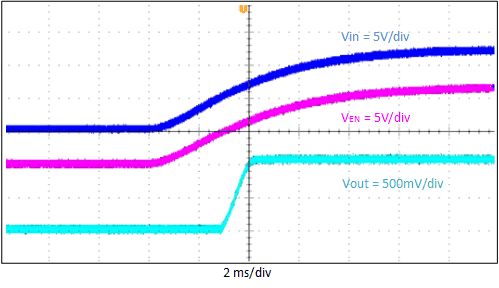

The TPS563202EVM start-up waveform relative to VIN is shown in Figure 4-11. Load = 3 A.

GUID-46DE5944-99EA-44C0-84CA-727A90757AC4-low.gifFigure 4-11 TPS563202EVM Start-Up Relative to VIN

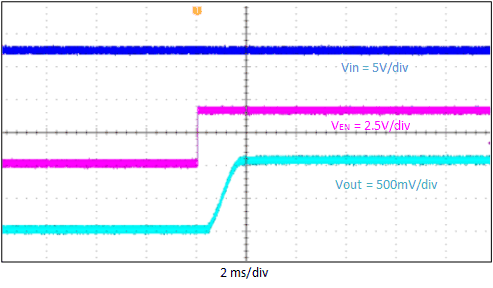

The TPS563202EVM start-up waveform relative to enable (EN) is shown in Figure 4-12. Load = 3 A.

GUID-D4E3B096-6F7D-4EA5-81A5-31B4515CEBCC-low.gifFigure 4-12 TPS563202EVM Start-Up Relative to EN
