4.8 Input Voltage Ripple

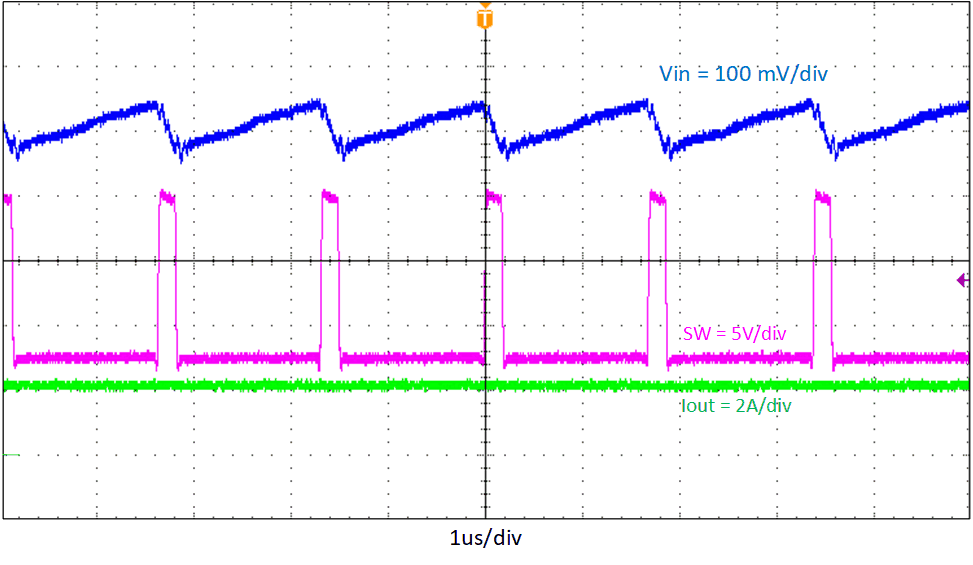

The TPS562207EVM input voltage ripple is shown in Figure 4-9. The output current is as indicated.

GUID-9ECDF10E-5B94-4639-BB07-FAFF2D05DE2D-low.gifFigure 4-9 TPS562207EVM Input Voltage Ripple, IOUT = 2 A
