10.11 Status

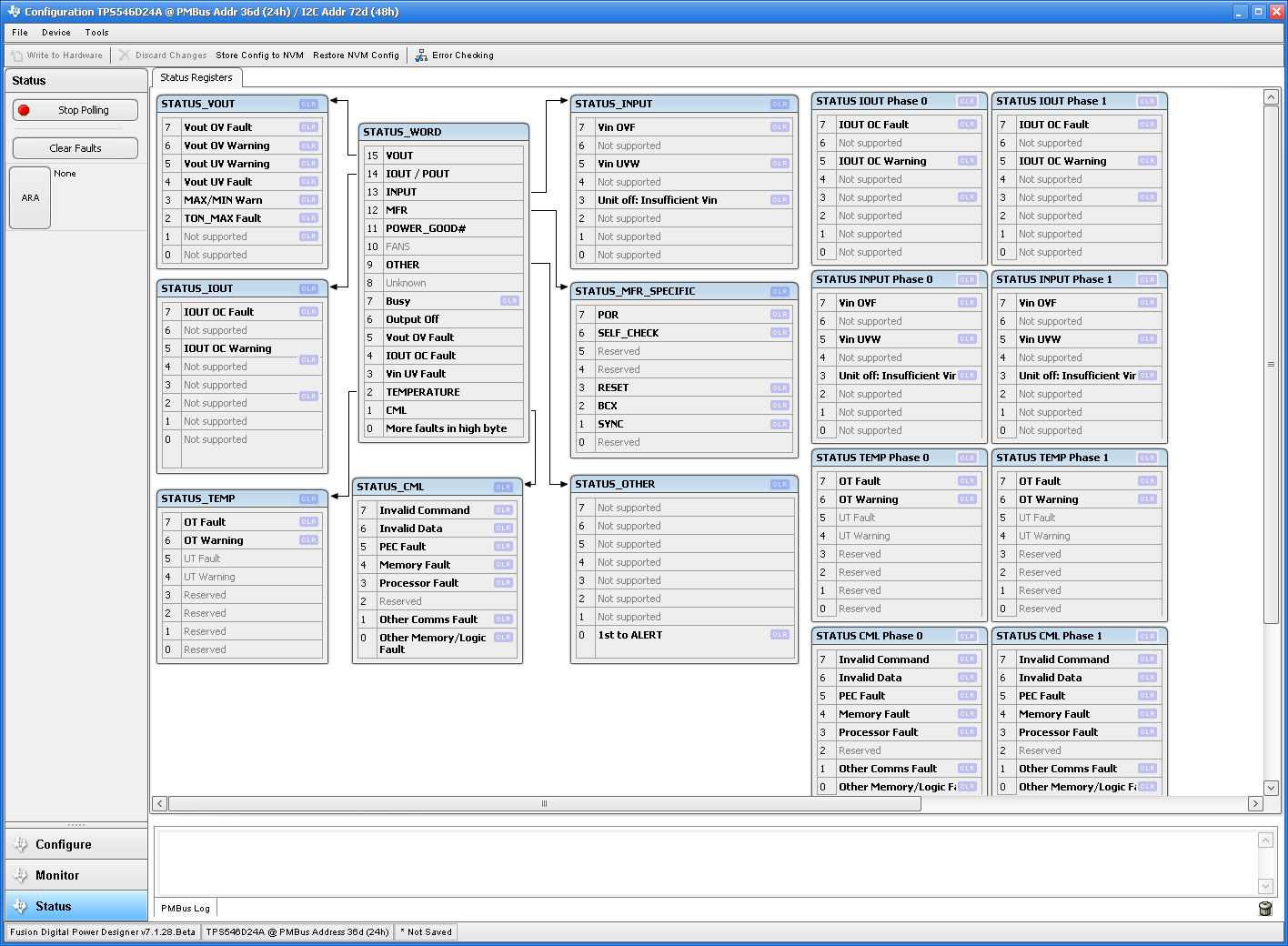

Selecting the Status screen from lower left corner (Figure 10-11) shows the status of the device.

GUID-480B879F-8ADC-46CC-9F8C-39D96E11B471-low.pngFigure 10-11 Status Screen
