7.7 Control On

Figure 7-11 and Figure 7-12 illustrate the start-up from control on waveforms at 0-A and 40-A output.

GUID-0DA42E33-B663-4CC0-80E9-6D1E3D21DB70-low.gifFigure 7-11 Start-Up From Control, 0-A Load

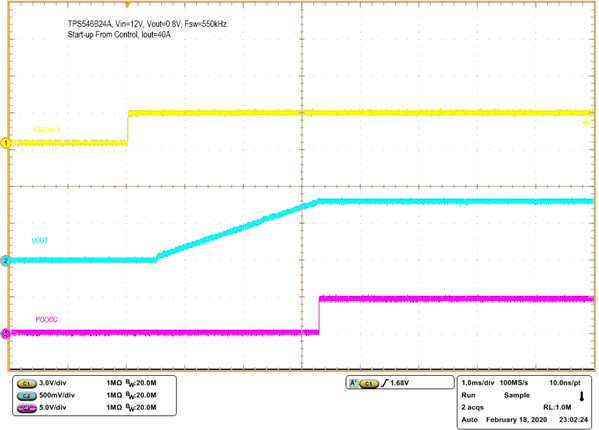

GUID-1CF62DE7-7435-4002-A11C-622A0698FDF8-low.gifFigure 7-12 Start-Up From Control, 40-A CC Load
