9.2 Charge Temperature Ranges

The measured temperature is segmented into several temperature ranges. The charging algorithm adjusts ChargingCurrent() and ChargingVoltage() according to the temperature range. The temperature ranges set in data flash should adhere to the following format:

T1 ≤ T2 ≤ T5 ≤ T6 ≤ T3 ≤ T4

Temp Range bit definitions can be found in ChargingStatus().

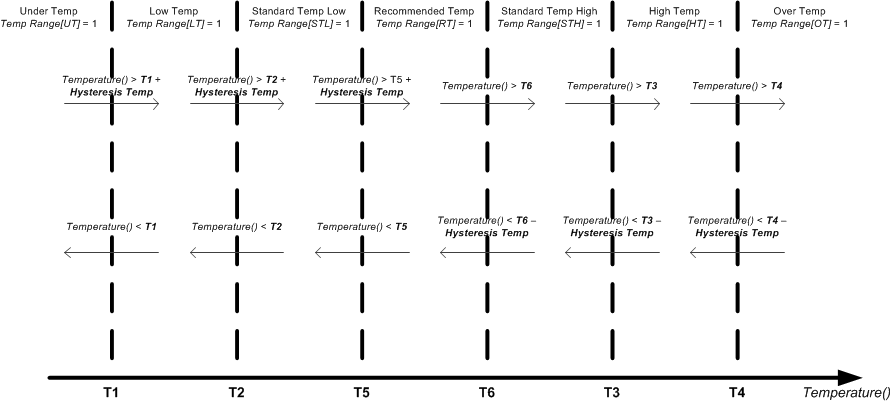

GUID-CEEF2B81-B536-4838-9E44-37D1A1BCEAEB-low.gifFigure 9-2 Charging Across Temperature
ClassSubclassNameTypeMinMaxDefaultUnitDescription
Advanced Charge AlgorithmsTemperature RangesT1I1–1281270°CT1 low temperature range lower limit
Advanced Charge AlgorithmsTemperature RangesT2I1–12812710°CT2 low temperature range to standard temperature range
Advanced Charge AlgorithmsTemperature RangesT5I1–12812720°CT5 recommended temperature range lower limit
Advanced Charge AlgorithmsTemperature RangesT6I1–12812725°CT6 recommended temperature range upper limit
Advanced Charge AlgorithmsTemperature RangesT3I1–12812745°CT3 standard temperature range to high temperature range
Advanced Charge AlgorithmsTemperature RangesT4I1–12812755°CT4 high temperature range upper limit
Advanced Charge AlgorithmsTemperature RangesHysteresisI1–1281271°CTemperature hysteresis, applied when temperature is decreasing.
