4.6 Gas Gauge Modes

Resistance updates take place only in DISCHARGE mode, while OCV and QMax updates only take place in RELAX mode. Fast QMax will update at the end of discharge (see Section 4.7.2 for details). Entry and exit of each mode is controlled by data flash parameters in the subclass Gas Gauging: Current Thresholds section. When the device is determined to be in RELAX mode and OCV is taken, the GaugingStatus()[REST] flag is set. In RELAX mode or DISCHARGE mode, BatteryStatus()[DSG] is set. Gas Gauge Operating Modes shows the flow.

GUID-20240129-SS0I-PVJP-PXXM-XNHGBNLBSSH7-low.svg Figure 4-1 Gas Gauge Operating Modes

CHARGE mode is exited and RELAX mode is entered when Current goes below Quit Current for a period of Chg Relax Time. DISCHARGE mode is entered when Current goes below (–)Dsg Current Threshold for a period of Quit Relax Time. DISCHARGE mode is exited and RELAX mode is entered when Current goes above (–)Quit Current threshold for a period of Dsg Relax Time. CHARGE mode is entered when Current goes above Chg Current Threshold for a period of Quit Relax Time. Figure 4-2 shows an example of the operating modes.

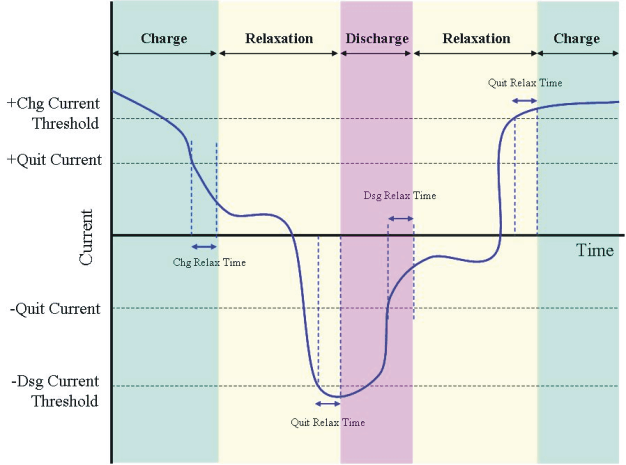

GUID-5751E686-1627-4642-AF81-D4A24403607C-low.gif Figure 4-2 Gas Gauge Operating Mode Example

The configuration options for the gas gauge modes are in the following data flash.

ClassSubclassNameTypeMinMaxDefaultUnitDescription
Gas GaugingCurrent ThresholdsDsg Current ThresholdI2–327683276760mADISCHARGE mode Current() threshold
Gas GaugingCurrent ThresholdsChg Current ThresholdI2–327683276775mACHARGE mode Current() threshold
Gas GaugingCurrent ThresholdsQuit CurrentI203276740mA|Current()| threshold to enter RELAX mode
Gas GaugingCurrent ThresholdsDsg Relax TimeU1025560sDISCHARGE to RELAX timeout
Gas GaugingCurrent ThresholdsChg Relax TimeU1025560sCHARGE to RELAX timeout
Gas Gauging Current Thresholds Quit Relax Time U1 0 255 1 s Relax to Discharge or Charge timeout
