Thermal Performance

Figure 3-40 through Figure 3-43 show the temperature rise of the TPS543820 ICs at full 8-A load. Figure 3-40 and Figure 3-41 have only one TPS543820 on and loaded. Figure 3-42 and Figure 3-43 have both TPS543820s loaded. A minimum of a 10 minute soak time was used before taking each measurement.

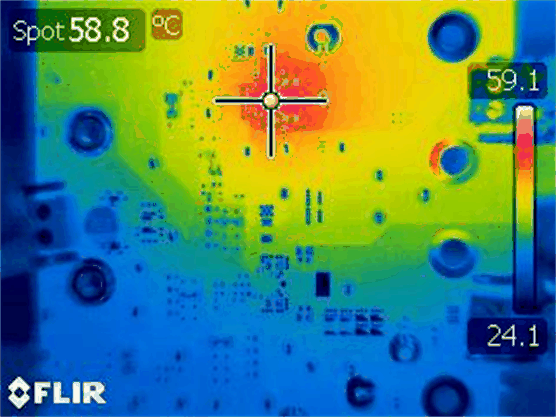

GUID-20201216-CA0I-KXCM-TPKB-ZKP4JVFH4R80-low.gifFigure 3-40 U1 Thermal Performance – 8-A Load and U2 off
GUID-20201216-CA0I-LNNZ-KC66-49S6TWLCK2VH-low.gifFigure 3-42 U1 Thermal Performance – Both 8-A Load

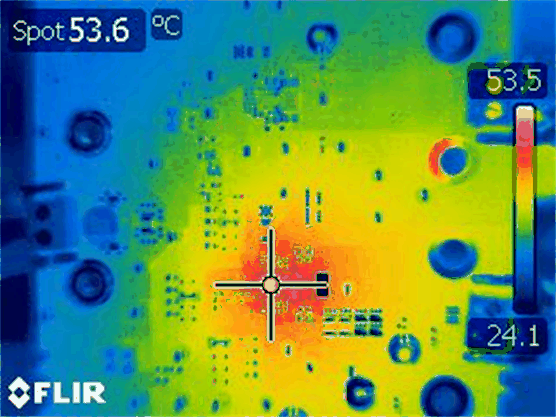

GUID-20201216-CA0I-HZKG-DRRT-2DQXSQPPBR4T-low.gifFigure 3-41 U2 Thermal Performance – 8-A Load and U1 off

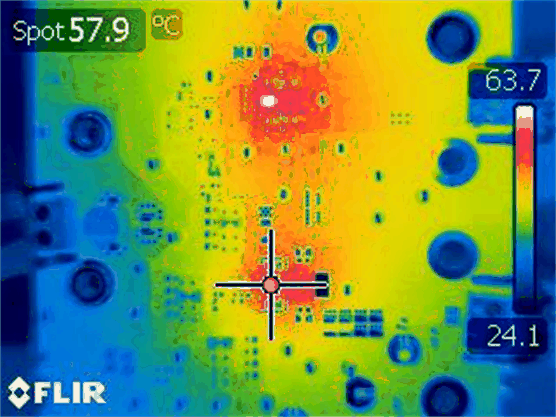

GUID-20201216-CA0I-V4PC-GJWR-W0TN2D1BGMKT-low.gifFigure 3-43 U2 Thermal Performance – Both 8-A Load
