Start-up Into Pre-Bias

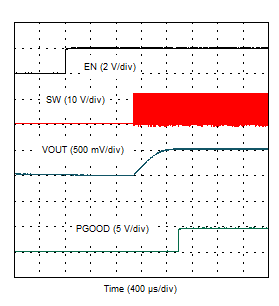

Figure 3-32 shows the EN start-up of U2 into a pre-biased output. The output voltage is pre-biased by toggling the EN pin low then high at a rate such that the output voltage does not fully discharge before EN goes high again.

GUID-7B1E724F-1FE5-4320-BEC4-2A7B04E096A0-low.gifFigure 3-32 U2 Start-up Into 0.5-V Pre-Bias
