3.12 Overvoltage Protection

Figure 3-38 and Figure 3-39 show the overvoltage protection behavior of U2. This is tested by applying a step to the FB pin with a function generator through the VO_ADJ test point. The VO_ADJ test point is initially equal to the reference voltage of 0.5 V and is stepped up to 3.3 V. The TPS543820 attempts to restart immediately after the OVP fault is cleared. It does not wait for the hiccup time period.

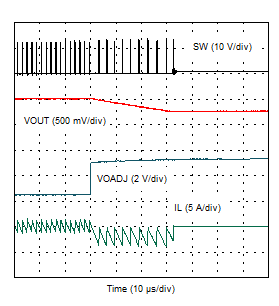

GUID-7A3098EC-79D1-4E28-80B1-6F6E261171FD-low.gifFigure 3-38 U2 Overvoltage Protection
GUID-0D52FDD0-2145-4EA6-8AC2-D472B2C5B2E1-low.gifFigure 3-39 U2 OVP and Recover
