4.6 Shut-Down

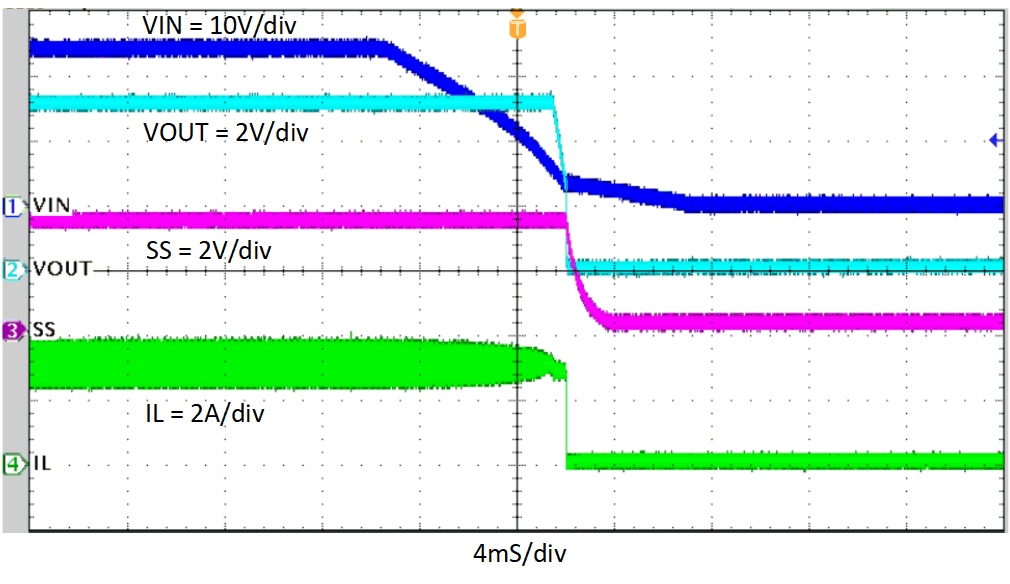

The TPS62933EVM shut-down waveform with 20MHz scope bandwidth relative to VIN is shown in Figure 4-11. Load = 3-A.

GUID-20210527-CA0I-B1VF-41T5-W6K11J4DQJNH-low.gif Figure 4-11 TPS62933EVM Shut-Down Relative to VIN
