5.3 PWM Dimming

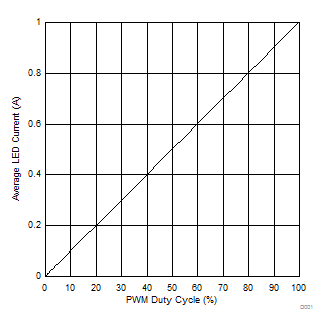

GUID-E3D1372F-BAB0-4D1F-9CC9-D816044F657A-low.gifFigure 5-3 Output Current vs. PWM Duty Cycle (250 Hz) 48-V Input, 2 LEDs
