4.4 Output Voltage Ripple

Figure 4-4 through Figure 4-9 show the TPS62933PEVM output voltage ripple. The output currents are as indicated and all waveforms are with 20-MHz scope bandwidth.

GUID-39D13B81-538B-4C10-A178-56C12A7BFD76-low.gifFigure 4-4 TPS62933PEVM Output Voltage Ripple, IOUT = 3 A
GUID-CFABBDB3-3A36-4968-80F0-A16A4B2158C9-low.gifFigure 4-5 TPS62933PEVM Output Voltage Ripple, IOUT = 2 A

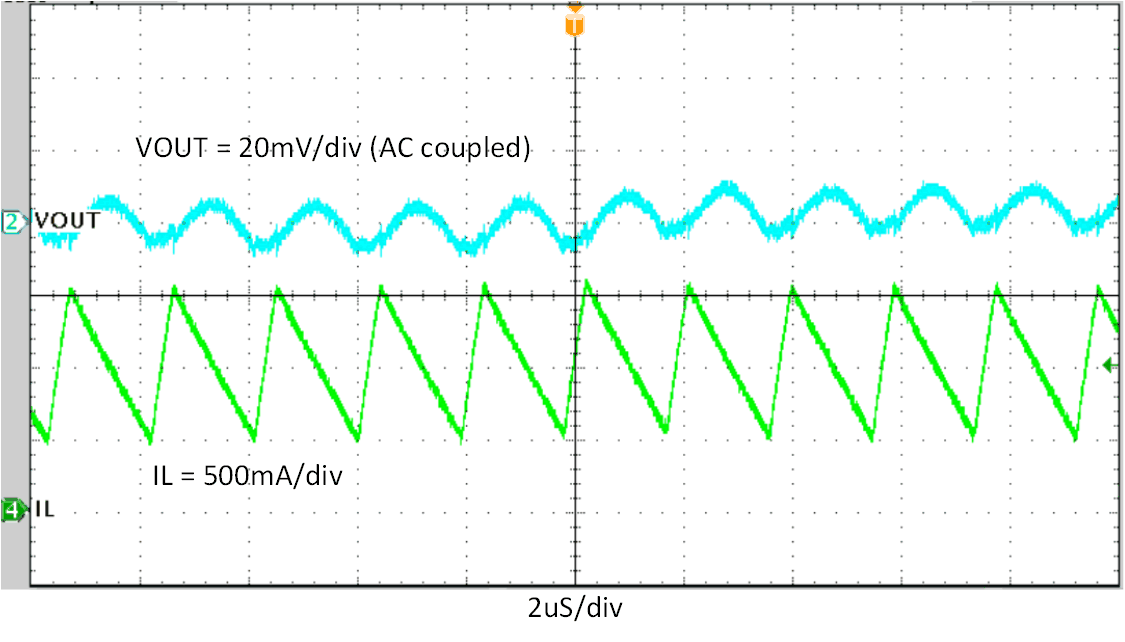

GUID-B7B6FD24-9094-4A01-978F-492254ED40B5-low.gifFigure 4-6 TPS62933PEVM Output Voltage Ripple, IOUT = 1 A

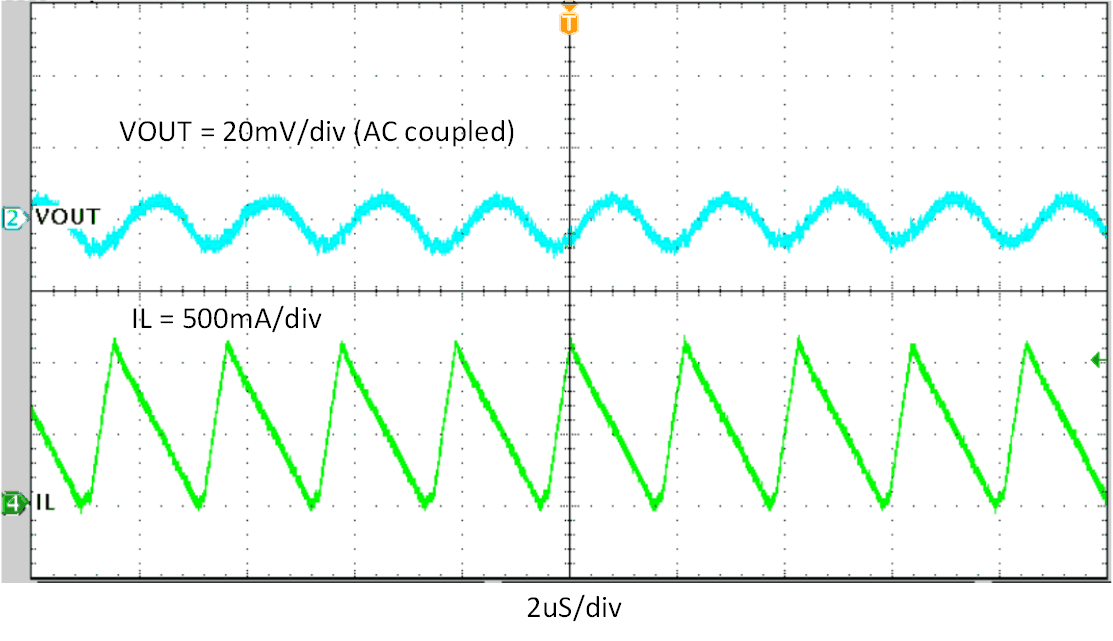

GUID-0EFC8C42-1BF4-45D4-B6B7-F0CF0EE849CD-low.gifFigure 4-7 TPS62933PEVM Output Voltage Ripple, IOUT = 500 mA
GUID-834F50F3-EC12-4436-B685-2F75D70ECF6D-low.gifFigure 4-8 TPS62933PEVM Output Voltage Ripple, IOUT = 100 mA

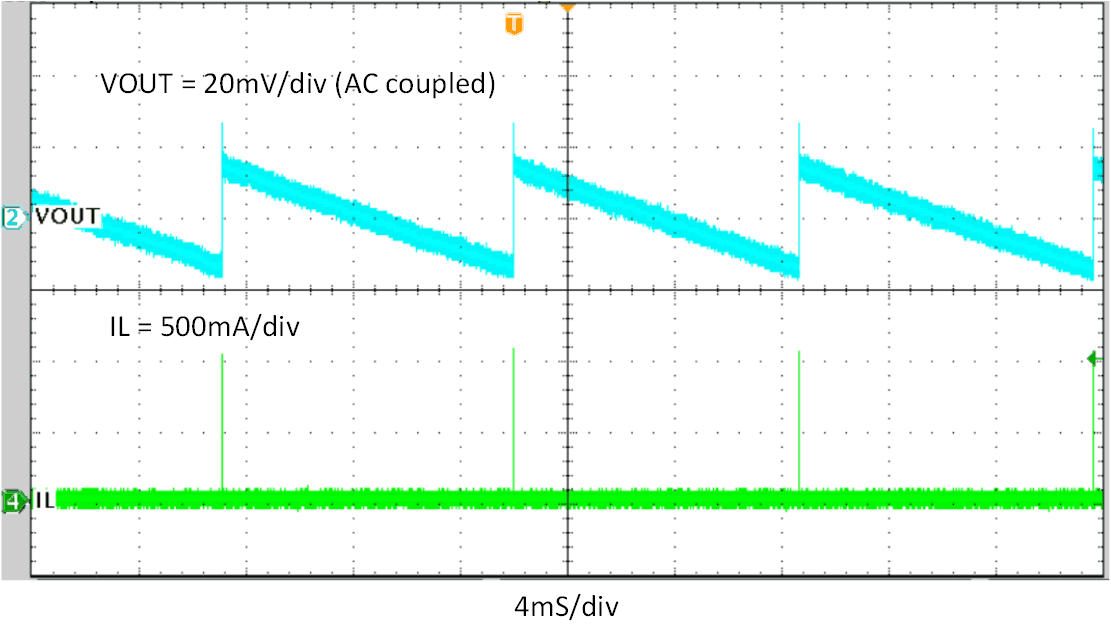

GUID-E55C9EE9-C1A4-4D1E-917B-6E4404C3DD4F-low.gifFigure 4-9 TPS62933PEVM Output Voltage Ripple, IOUT = 0 A
