4.3 Load Transient Response

The TPS62933PEVM response to load transient is shown in Figure 4-2 and Figure 4-3. The current steps and slew rates are indicated in the figures with 20-MHz scope bandwidth. Total peak-to-peak voltage variation is as shown in the following figure.

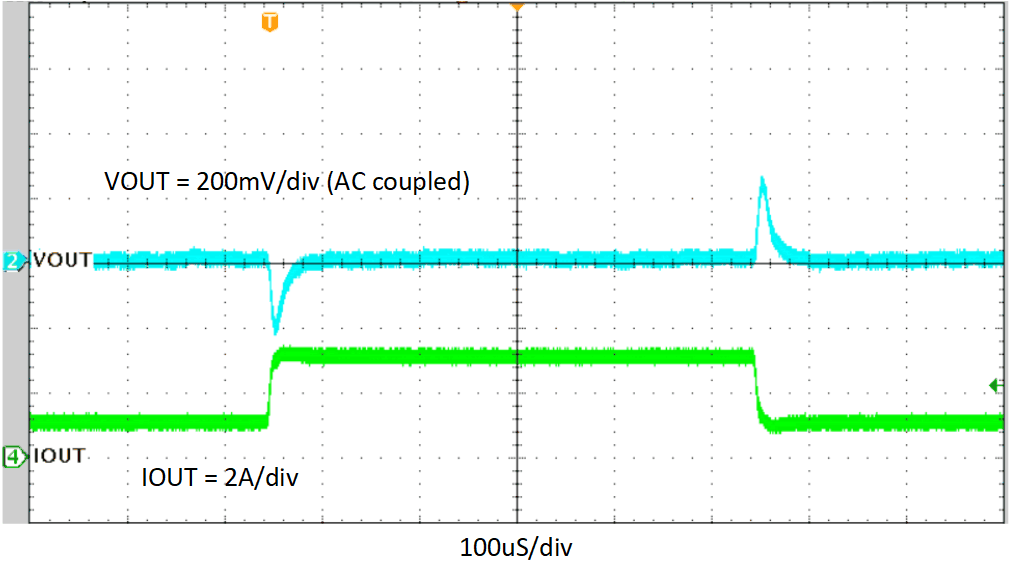

GUID-166E5118-042D-4E66-AA10-0CFCC5D492A8-low.gifFigure 4-2 TPS62933PEVM Load Transient Response, 1-A to 3-A Load Step, 0.8 A/µs
GUID-87F53CD8-0C11-47F3-B420-58EA90803F1B-low.gifFigure 4-3 TPS62933PEVM Load Transient Response, 0.5-A to 2.5-A Load Step, 0.8 A/µs
