10.5 SMBALERT# Mask

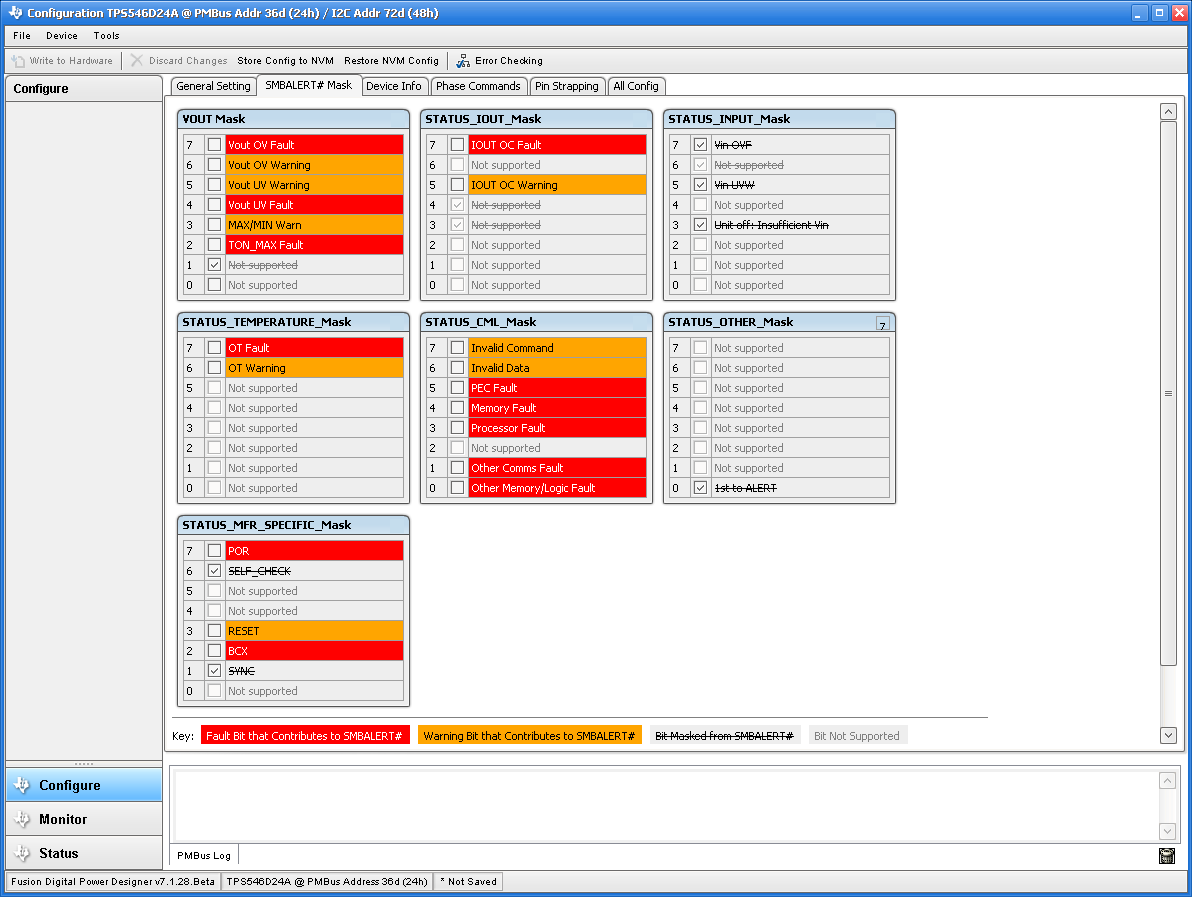

The sources of SMBALERT which can be masked are found and configured on the SMBALERT # Mask tab (Figure 10-5).

GUID-14684BF1-4DD3-49BE-B08E-F2293C24EE98-low.pngFigure 10-5 Configure – SMBALERT # Mask
